SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3

China SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3 supplier
SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3 supplier SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3 supplier

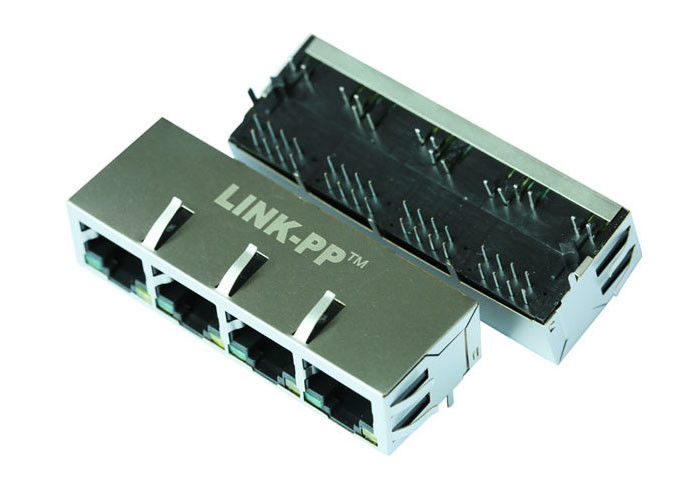

Large Image :  SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: SS-748804SC5-BB-PG4-BZ

Payment & Shipping Terms:

Minimum Order Quantity: 200/1200/1320
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Design PN#: SS-748804SC5-BB-PG4-BZ Samples: Available Free
Orientation: 90° Angle (Right) LED: Green/Yellow LED
Made In China: LPJE104AENL-3

SS-748804SC5-BB-PG4-BZ Quad-port Tab Down RJ45 1x4 Connector LPJE104AENL-3





Shielded 1x4 Port RJ45 Magjack Connector without Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJE104AENL-3
Bel fuse Part Number SS-748804SC5-BB-PG4-BZ
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB Down
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.527
Package Height (mm) 13.39
Package Length (Inches) 0.831
Package Length (mm) 21.10
Package Width (Inches) 2.325
Package Width (mm) 59.06
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
  • 1000 Base-T
  • Impedance: 100OHMS
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Operating Temp: 0ºC to +70ºC Or  -40ºC to +85ºC
  • Optional Gold Plating Thickness
  • Other LED Patterns available

Successful Customer:

Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.



SS-748804SC5-BB-PG4-BZ Quad Port Tab Down Multi-Port RJ45 Connector LPJE104AENL-3 0



FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3. Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4. What is your delivery time?

Usually within 2-3 working days

5. What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6. Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
