Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 1-1840855-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Designe PN#: |
1-1840855-4 |
Made In China: |
LPJG17020A4NL |
Family: |
Rj45 Network Port |
Interface: |
1000 Base-TX |
LED: |
Flexible |
Samples: |
Available |
Designe PN#: |
1-1840855-4 |
Made In China: |
LPJG17020A4NL |
Family: |
Rj45 Network Port |
Interface: |
1000 Base-TX |
LED: |
Flexible |
Samples: |
Available |

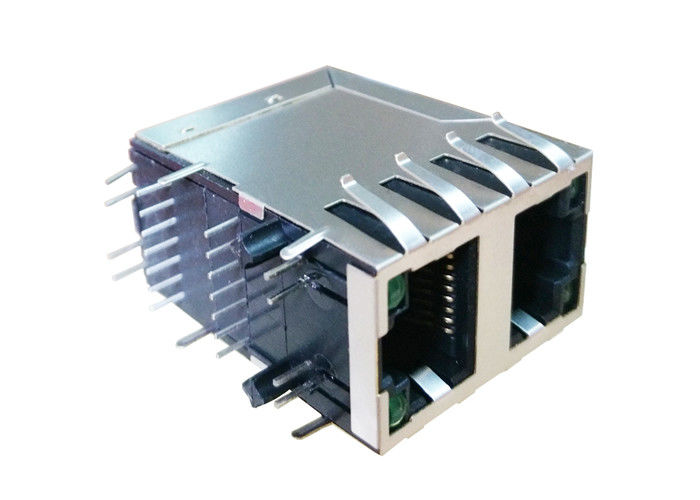

| 2X1 Ethernet RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics, Green&Yellow/Green&Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJG17020A4NL |
| Tyco Part Number | 1-1840855-4 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Yellow/Green&Yellow |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.130 |
| Package Length (mm) | 28.70 |
| Package Width (Inches) | 0.676 |
| Package Width (mm) | 17.16 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Application field
1) MEDICAL
Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis
2) NETWORKING
Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet
3)TELECOM/DATACOM
Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices
3) CONSUMER
Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices
4) SECURITY
Control Panels, Fire Alarm Zones, Hand Held Devices
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
FAQ:
Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4: What payment method do you accept?
A4: T/T(Bank transfer), Western Union, Money Gram, PayPal.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
