FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL

China FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL supplier
FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL supplier FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL supplier

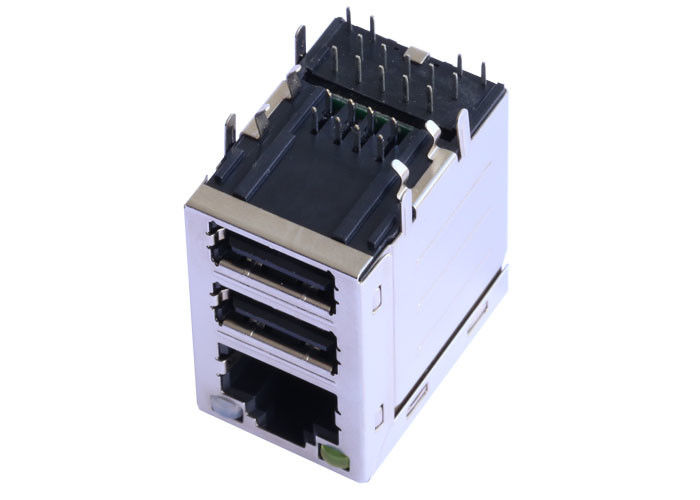

Large Image :  FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: FM38U1A-B313-4F

Payment & Shipping Terms:

Minimum Order Quantity: 500,5K
Price: Supportive
Packaging Details: Tray Package
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4300K/month
Contact Now
Detailed Product Description
Spec: FM38U1A-B313-4F LED: Orange , Green / Yellow
PCB Mounting Orientation: Side Entry (Right Angle) Connector: Jack Female
Port Configuration: Single With Dual USB Application: FM38U1A-B313-4F => LPJU6895BONL

FM38U1A-B313-4F Ethernet RJ45 Dual USB Connector 10/100/1000M LPJU6895BONL





  • ​​Right Angle RJ45 Jack FM38U1A-B313-4F  Equivalent In China

  • Dual USB RJ45 Connector Competitive Prices

  • 1 x 1 Port RJ45 Jack LPJU6895BONL Alternate Equivalent

  • Shielded RJ45 female connector



Specifications



Part Number

FM38U1A-B313-4F

LINK-PP Part Number

LPJU6895BONL

AutomDX

YES

Bst Circuit

YES

Configuration RX

T,C

Configuration TX

T,C

Contact Mating Area Plating

GOLD 6u"/15u"/30u"/50u"

Cores Per Port

8

Diodes

NO DIDES41

LED Option

Orange , Green / Yellow

Latch

UP/DOWN

Number of Ports

SINGLE PORT WITH DUAL USB

PCB

FR4

PCB Mount Angle

SIDE ENTRY

PCB Retaining Post

T POST

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Search

YES

Shield EMI Tabs

WITH OR WITHOUT

Speed

10/100/1000 BASE-T

Temperature

-40 TO 85°C

Turns Ratio RX

1CT:1

Turns Ratio TX

1CT:1



  • RJ-45 connector integrated with Filter

  • Size same as RJ-45 connector to save PCB board space

  • Reduce EMI radiation, Improve EMI performance

  • High performance for maximum EMI suppression.

  • ISO9001,SGS,UL,CE,REACH

  • Embedded mini PCI express Cellular modemfrom SierraWireless

  • Reduce EMI radiation, Improve EMI performance

  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,

  • Multi-port and Stackable configurations (Thru-hole/ SMT)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction

FM38U1A-B313-4F Ethernet Dual RJ45 USB Connector 10/100/1000M LPJU6895BONL



FAQ

Q: Can I have samples for testing quality?

A: Yes,you can huy some samples of any our products for testing quality and market

Q: What is delivery time if we place an order?

A: it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for more QTY.order,let’s confirm when you place offical order.

Q: Do you accept OEM/ODM?

A: We Support OEM/ODM Service:pls don’t hesitate to tell us your ideas

Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q: Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to hold quality assurance.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods in time and after-sales services departments will promise that try our best to solve all problem within 24 hours.
