Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

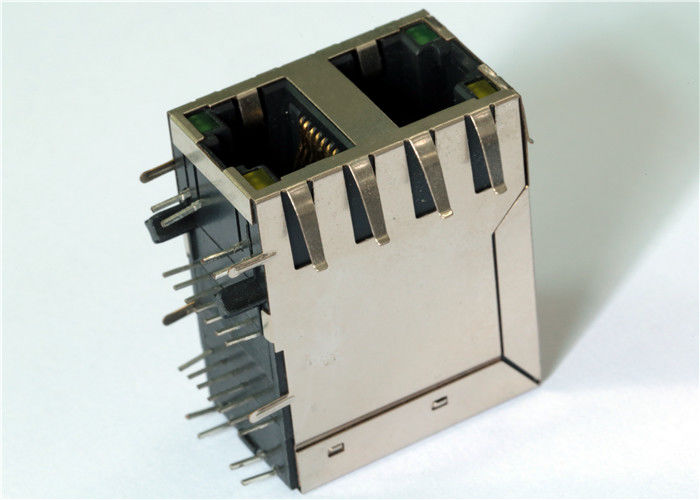

Model Number: LPJG17610AANL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
MFN: |
XMH-2116D3018 |
Alternate: |
LPJG17610AANL |
Documents: |
3D STEP PDF Datasheet Available |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Through Hole |
Cross Rf: |
LPJG17610AANL = XMH-2116D3018 |
MFN: |
XMH-2116D3018 |
Alternate: |
LPJG17610AANL |
Documents: |
3D STEP PDF Datasheet Available |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Through Hole |
Cross Rf: |
LPJG17610AANL = XMH-2116D3018 |
|
1. Product Type Features:
|
|
|
1) Product Type
|
Connector
|
|
2) Jack Type
|
RJ45
|
|
3) Profile
|
Standard
|
|
4) PCB Mounting Orientation
|
Through Hole
|
|
2. Mechanical Attachment:
|
|
|
1) Jack Configuration
|
2X2
|
|
3. Electrical Characteristics:
|
|
|
1) Shielded
|
Yes
|
|
4. Termination Related Features:
|
|
|
1) EMI Finger
|
Yes
|
|
2) Termination Method
|
Solder
|
|
5. Body Related Features:
|
|
|
1) Port Configuration
|
Stecked
|
|
2) EMI Fingers -Top and Sides
|
With/Without
|
|
3) Latch Orientation
|
Standard - Latch Down
|
|
4) PCB Tail Length
|
3.50±0.50mm
|
|
6. Contact Related Features:
|
|
|
1) Preloaded
|
Yes
|
|
2) Contact Termination Type
|
Through Hole
|
|
7. Housing Related Features:
|
|
|
1) Connector Style
|
Jack
|
|
8. Industry Standards:
|
|
|
1) RoHS/ELV Compliance
|
RoHS compliant, ELV compliant
|
|
2) Lead Free Solder Processes
|
Wave solder capable to 265°C
|
|
3) RoHS/ELV Compliance History
|
Always was RoHS compliant
|
|
9. Identification Marking:
|
|
|
1) Left LED Color
|
Green or Yellow
|
|
2) Right LED Color
|
Green or Yellow
|
|
10. Conditions for Usage:
|
|
|
1) Applies To
|
Printed Circuit Board
|
|
2) Environmental Conditions
|
Office / Premises
|
|
3) Operating Temperature (°C )
|
0 - 70/-40 - +85
|
|
11. Configuration Related Features
|
|
|
1) Magnetic Circuit
|
3D15
|
|
2) Status Indicator
|
Led
|
|
3) Decoupling Capacitor
|
With/Without
|
|
4) Rear PCB Ground Tab
|
With/Without
|
|
5) Signal Lead Quantity
|
8
|
|
12. Operation/Application:
|
|
|
1) Application
|
2x 10/100/1000 Base-T
|
