Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 71F-1208GYD5NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
71F-1208GYD5NL |
Family: |
2x1 Stacked RJ45 |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Category: |
Stacked RJ45 |
File: |
PDF/3D/Step/IGS/Price/Cross |
Spec: |
71F-1208GYD5NL |
Family: |
2x1 Stacked RJ45 |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Category: |
Stacked RJ45 |
File: |
PDF/3D/Step/IGS/Price/Cross |

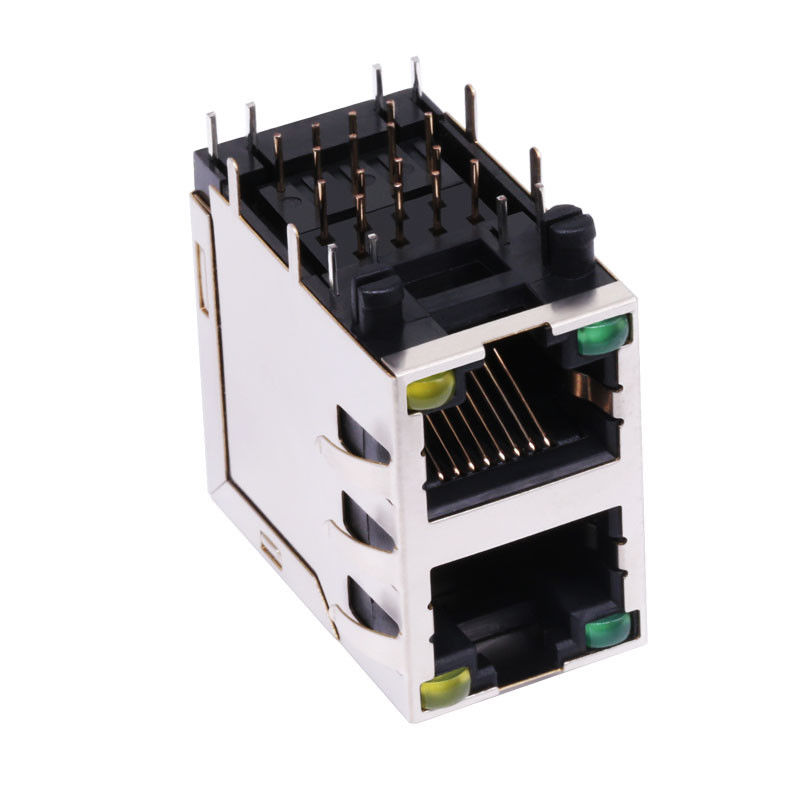

| 2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJ17410AHNL |
| Abracon LLC Part Number | 71F-1208GYD5NL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GreenYellow |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.996 |
| Package Height (mm) | 25.30 |
| Package Length (Inches) | 1.122 |
| Package Length (mm) | 28.49 |
| Package Width (Inches) | 0.677 |
| Package Width (mm) | 17.20 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional switches factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the rj45 jack are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
