RoHS Compliant XRJDB-S-01-8-8-1 1x1 Port Low-Profile RJ45 Jack

RoHS Compliant XRJDB-S-01-8-8-1 1x1 Port Low-Profile RJ45 Jack
RoHS Compliant XRJDB-S-01-8-8-1 1x1 Port Low-Profile RJ45 Jack

Large Image :  RoHS Compliant XRJDB-S-01-8-8-1 1x1 Port Low-Profile RJ45 Jack

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: XRJDB-S-01-8-8-1

Payment & Shipping Terms:

Minimum Order Quantity: 1000/lot
Price: Supportive
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 100K-PCS/Month
Detailed Product Description
Specifications: XRJDB-S-01-8-8-1 Delivery Time: 5-7 Weeks
Standard: IEEE802.3 Gold-plating: FU
Family: Low Profile RJ45 Connector Files: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

ultra low profile jack

,

low profile rj45 connector

Low-Profile RJ45 Jack With LEDS LPJE167BDNL



Shielded 1x1 Port Low-Profile RJ45 Connector with Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJE167BDNL
Pulse Part Number XRJDB-S-01-8-8-1
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
LED Option Yellow/Green LEDs
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

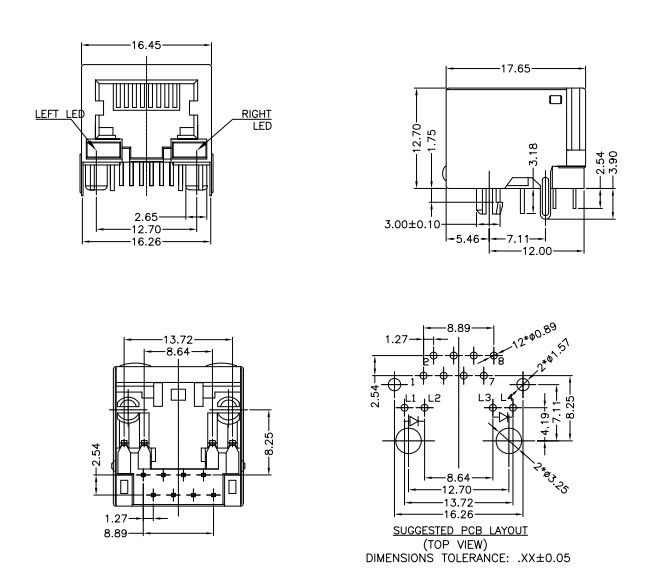

Package Height (mm) 12.70
Package Length (mm) 17.65
Package Width (mm) 16.45
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
