LINK-PP 1X1 Press Fit LP11F012 SFP Cage with Spring Finger

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: LP11F012

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

1X1 SFP Cage

,

THT LINK-PP Cages

,

THT SFP Cage

Features:
Board Guide, EMI Shielded
Connector Type:
SFP
Mounting Type:
THT,R/A
Connector Style:
Receptacle With Cage, Ganged (1x1)
Light Pipe:
With Or Without Flexible
Termination:
Solder
Features:
Board Guide, EMI Shielded
Connector Type:
SFP
Mounting Type:
THT,R/A
Connector Style:
Receptacle With Cage, Ganged (1x1)
Light Pipe:
With Or Without Flexible
Termination:
Solder
LINK-PP 1X1 Press Fit LP11F012 SFP Cage with Spring Finger



LP11F012 Drawings:



LP11F012.pdf

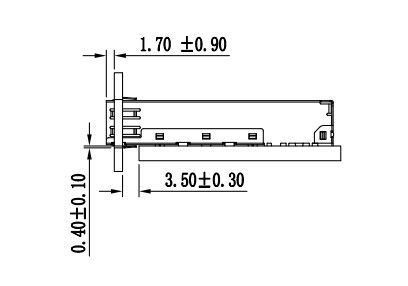

Recommended Bezel Design:

LINK-PP 1X1 Press Fit LP11F012 SFP Cage with Spring Finger 0



Features and Benefits of LINK-PP Cages:

  1. Tape and Reel Packaging: Designed for easy pick-and-place on PCBs, simplifying the assembly process.
  2. Versatile Compatibility: Suitable for various board thicknesses and assembly processes, offering design flexibility.
  3. Press-Fit Tails: Ideal for belly-to-belly applications in single and ganged cages, maximizing PCB space utilization.
  4. Integrated Lightpipes are compatible with SMT LEDs, providing clear port status and activity feedback.
  5. Belly-to-Belly Module Orientation: Facilitates easy removal of modules from the port.
  6. Unique Thumb Latch: Features an intuitive squeeze-and-pull latching mechanism for user-friendly operation.
  7. Gold Plating Options: Available in 6µ", 15µ", or 30µ" gold plating, accommodating different cost and performance preferences.
  8. Advanced EMI Shielding: Ganged cages include 360° elastomeric gaskets, spring fingers, and multiple ground-pin locations for superior EMI protection.
  9. Elastomeric or Metal Gaskets: Two options available for exceptional EMI shielding.
  10. Press-Fit Termination: Eliminates the need for soldering, reducing applied costs and preventing solder-related issues.
  11. Hot-Pluggable Transceivers: Allow modules to be inserted or removed without powering down the system.
  12. Zinc Diecast Backshells: Provide 360° EMI shielding, ensuring robust signal integrity.



NOTES:

  • Material: Copper Alloy, Ni-Plated
  • Packaging: Tray Packaging
  • Temperature Range: -55℃ to +85℃


Customization:

  • Datum And Basic Dimensions Established By Customer
  • Pads And Vias Are Chassis Ground, 11 Places
  • Thru Holes, Plating Optional
