Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJSBE5381C1 / RJSBE-5381-C1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.35
Packaging Details: Tray
Delivery Time: 2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 450000-550000/Month
Amphenol P/N: |
RJSBE-5381-C1 |
LINK-PP P/N: |
LPJE167NNL |
Turn Ratio: |
1CT:1CT |
Mounting Type: |
Through Hole |
Gender: |
Jack (Female) |
Shielding: |
Shielded, EMI Fingers |
Mounting Angle: |
Right Angle |
Termination: |
Solder |
Amphenol P/N: |
RJSBE-5381-C1 |
LINK-PP P/N: |
LPJE167NNL |
Turn Ratio: |
1CT:1CT |
Mounting Type: |
Through Hole |
Gender: |
Jack (Female) |
Shielding: |
Shielded, EMI Fingers |
Mounting Angle: |
Right Angle |
Termination: |
Solder |
Specifications of Amphenol Modular Jack
1. Materials:
2. LED Specifications:
3. Mechanical Characteristics:
4. Electrical Characteristics:
5. Environmental Specifications:

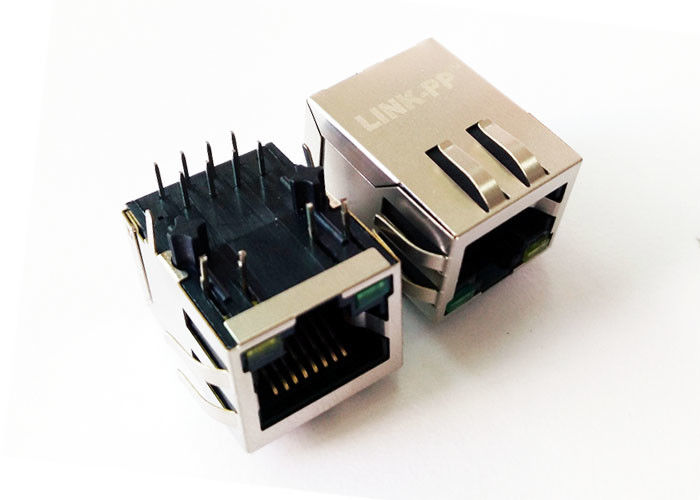

RJSBE5381C1 RJ45 8P8C Modular Connector Details:
|
Part Status |
Active |
|
|---|---|---|
|
Connector Type |
Modular Jack |
|
|
Number of Positions/Contacts |
8P8C |
|
|
Number of Ports |
1 |
|
|
Number of Rows |
1 |
|
|
Mounting Type |
Through Hole |
|
|
Orientation |
90° Angle (Right) |
|
|
Termination |
Solder |
|
|
Shielding |
Shielded, EMI Finger |
|
|
Latch Orientation |
Tab Down |
|
|
Profile |
Standard |
|
|
LED Color |
Yellow - Green |
|
|
Size |
19.66 x 17.65 x 12.70 mm |
|
|
Minimum Operating Temperature |
- 55 ℃ |
|
|
Maximum Operating Temperature |
+ 85 ℃ |
|
|
RoHS Status |
RoHS-conform |
|
|
Pitch |
1.27mm (0.050in) |
|
|
Tail Length |
2.01mm (0.079in) to 3.00mm (0.118in) |
|
|
Plating Contact area |
1.27μm (50μin) Gold |
