Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: JFM38A1F-EN08-4F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
JFM38A1F-EN08-4F |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X1 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
JFM38A1F-EN08-4F |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X1 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

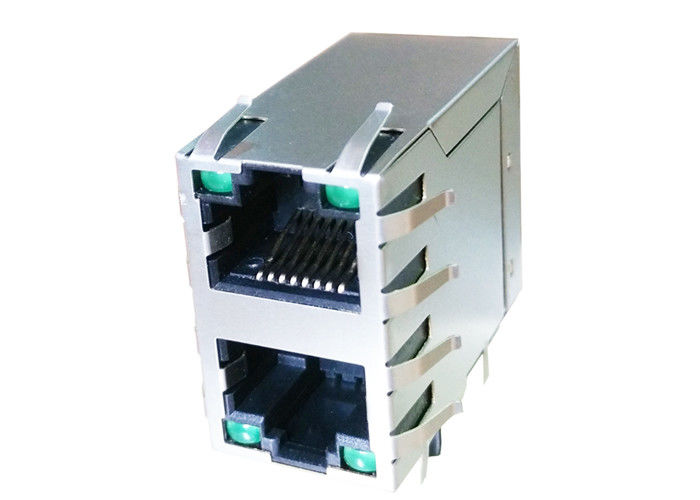

| 2X1 Ethernet RJ45 Connector with1000 Base-T Magnetics, GREEN/GREEN&ORANGE LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJG17040A27NL |
| Cross Part Number | JFM38A1F-EN08-4F |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN&ORANGE |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.130 |
| Package Length (mm) | 28.70 |
| Package Width (Inches) | 0.676 |
| Package Width (mm) | 17.16 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1G Base-T |
| Temperature | -40°C ~ 100°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
