Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM3-ZZ-0059
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
RM3-ZZ-0059 |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X1 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
RM3-ZZ-0059 |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X1 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

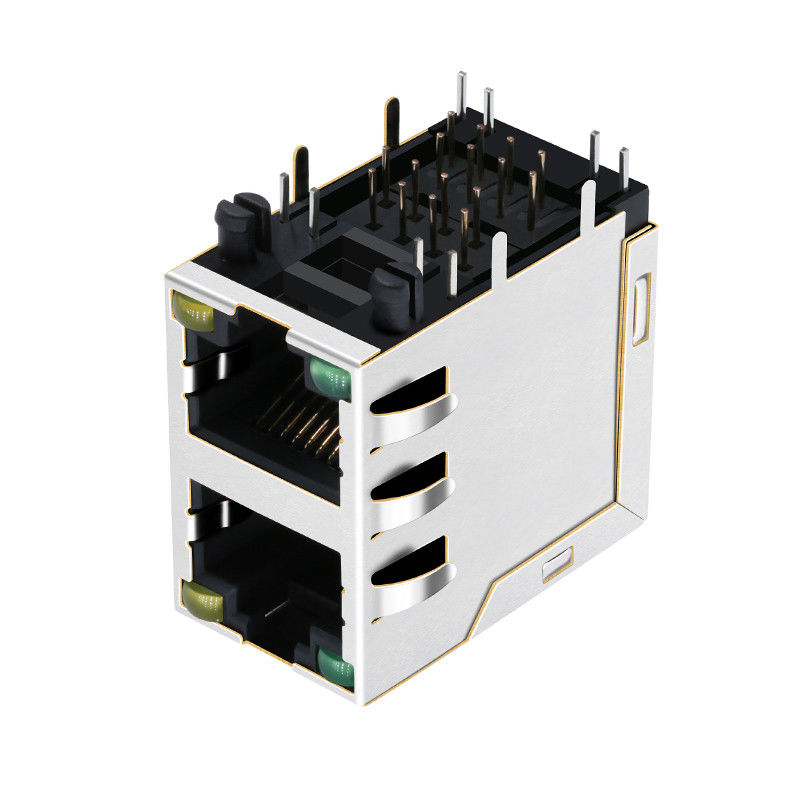

| 2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, With Green/Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJ17206AHNL |
| Cross Part Number | RM3-ZZ-0059 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.996 |
| Package Height (mm) | 25.30 |
| Package Length (Inches) | 1.122 |
| Package Length (mm) | 28.49 |
| Package Width (Inches) | 0.677 |
| Package Width (mm) | 17.20 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Packing
1. Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2. We can do the packing according to the customer's requirement, but the price is different.
Shipping:
By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost
