10/100 Base-T Voip Magnetics Modules LP2019ANL Cross 749013010 POE Transformer

10/100 Base-T Voip Magnetics Modules LP2019ANL Cross 749013010 POE Transformer
10/100 Base-T Voip Magnetics Modules LP2019ANL Cross 749013010 POE Transformer 10/100 Base-T Voip Magnetics Modules LP2019ANL Cross 749013010 POE Transformer

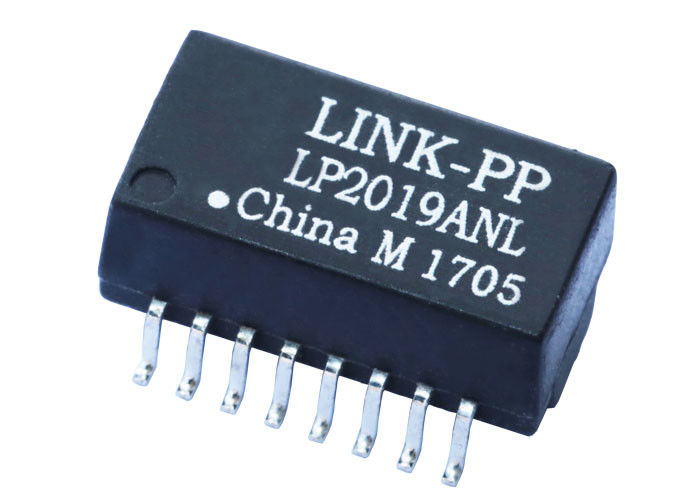

Large Image :  10/100 Base-T Voip Magnetics Modules LP2019ANL Cross 749013010 POE Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: 749013010

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Detailed Product Description
Specification: 749013010 Part No: LP2019ANL
Interface: 10/100Mbps Power Family: Telecom Transformer
Pins: 16Pins Samples: Free Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

power over ethernet transformer

,

poe magnetics

LP2019ANL Cross 749013010 POE Transformer 10/100 Base-T Voip Magnetics Modules
  • 10/100 Base-T Voip Magnetics Modules
  • IEEE802.3af/ANSI X3.263 Compliant Performance
  • 350mA Current Capability
  • Designed For IP Phone Or Switch Application
  • Suitable For Auto MDIX Application
  • 10/100Base-T Ethernet Single Port Transformer Module
  • LP2019ANL.pdf
  • Cross 749013010
LINK-PP LP2019ANL 100% CROSS 749013010
LINK-PP Part Number LP2019ANL
Pulse Part Number 749013010
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.402
Package Width (mm) 10.20
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specification @25℃
1.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
0.1-100MHz:-1.0dB MAX
3.Return Loss:
0.1-30MHz:-18dB MIN
30-60MHz: -13dB MIN
60-80MHz:-12dB MIN
4.Crosstalk:
0.1-100MHz:-35dB MIN
5.DCMR:
30MHz:-42dB MIN
60MHz:-36dB MIN
100MHz:-33dB MIN
6.CMRR:
1-100MHz: -40dB TYP
7.L: 1-3,6-8:
350uH MIN 100KHz 0.1V 8mADC
8.DCR: 1-3,6-8: 0.9 OHM MAX
9.LK:
1-3(Tie:16+14):0.5uH MAX 100KHz 0.1V
6-8(Tie:11+9): 0.5uH MAX 100KHz 0.1V
10.Cw/w:
(1-3),(16-14):28pF MAX 100KHz 0.1V
(6-8),(11-9): 28pF MAX 100KHz 0.1V
11.Isolation Voltage: 1500Vrms
12.Operating Temperature: -40℃~+85℃.



NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Power over Ethernet (PoE) Magnetics
3.PoE applications current capability: 350mA.
4.With various Turns Ratios.
5.RoHS "NL" peak solder rating 255± 5℃.
