Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 7497010211A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
7497010211A |
LED: |
Green - Yellow |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Connector: |
Jack Female |
Port Configuration: |
Single With Dual USB |
Application: |
7497010211A => LPJU5002BPNL-3 |
Spec: |
7497010211A |
LED: |
Green - Yellow |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Connector: |
Jack Female |
Port Configuration: |
Single With Dual USB |
Application: |
7497010211A => LPJU5002BPNL-3 |

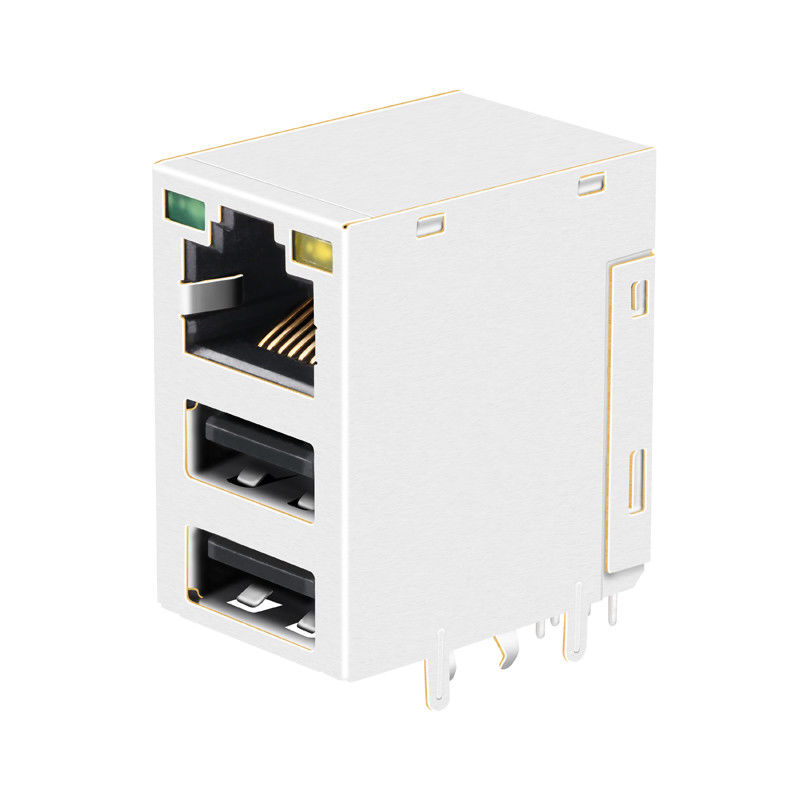

1 Port RJ45 with USB Dual Magjack Connector Through Hole 10/100 Base-T 7497010211A
Right Angle RJ45 Jack 7497010211A Equivalent In China
Dual USB RJ45 Connector Competitive Prices
1 x 1 Port RJ45 USB Jack 7497010211A Alternate Equivalent
Shielded USB RJ45 female connector
Specifications
| Connector Type | RJ45 with USB A, Dual | |
|---|---|---|
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-T | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 1.238" (31.45mm) | |
| LED Color | Green - Yellow | |
| Number of Cores per Jack | 5 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Up | |
| Contact Material | Tin | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
RJ-45 connector integrated with Filter
Size same as RJ-45 connector to save PCB board space
Reduce EMI radiation, Improve EMI performance
High performance for maximum EMI suppression.
ISO9001,SGS,UL,CE,REACH
Embedded mini PCI express Cellular modemfrom SierraWireless
Reduce EMI radiation, Improve EMI performance
Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
Multi-port and Stackable configurations (Thru-hole/ SMT)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
FAQ
Q: Can I have samples for testing quality?
A: Yes,you can huy some samples of any our products for testing quality and market
Q: What is delivery time if we place an order?
A: it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for more QTY.order,let’s confirm when you place offical order.
Q: Do you accept OEM/ODM?
A: We Support OEM/ODM Service:pls don’t hesitate to tell us your ideas
Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q: Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to hold quality assurance.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods in time and after-sales services departments will promise that try our best to solve all problem within 24 hours.
