Home > products > RJ45 Multi Port Jack > LPJ17410AHNL 10/100 Base-T Magnetic Pcb Rj45 Jack

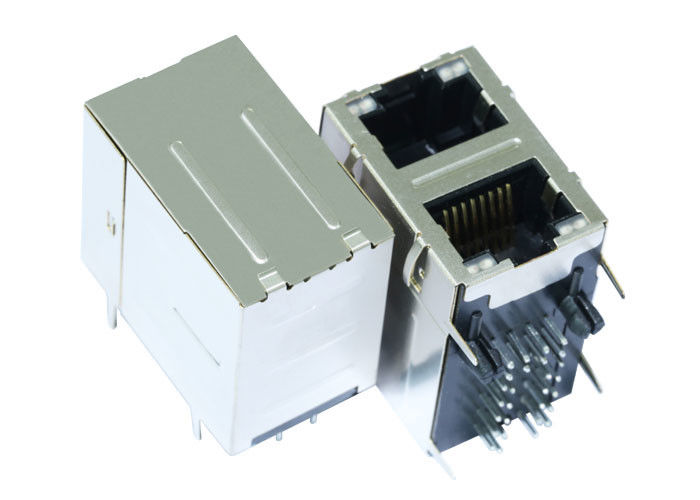

LPJ17410AHNL 10/100 Base-T Magnetic Pcb Rj45 Jack

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 71F-1208GYD2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

71F-1208GYD2NL stacked rj45 connectors

,

2X1 port shielded rj45 jack

Spec:
71F-1208GYD2NL
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
71F-1208GYD2NL
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
LPJ17410AHNL 10/100 Base-T Magnetic Pcb Rj45 Jack
71F-1208GYD2NL 10/100 Base-T magnetic 2X1 Stacked Rj45 Jack LPJ17410AHNL

Description:

2X1 Ethernet RJ45 Connector with10/100 Base-T Magnetics, Green/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJ17410AHNL
Cross Part Number 71F-1208GYD2NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.996
Package Height (mm) 25.30
Package Length (Inches) 1.122
Package Length (mm) 28.49
Package Width (Inches) 0.677
Package Width (mm) 17.20
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
