LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector

LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector
LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector

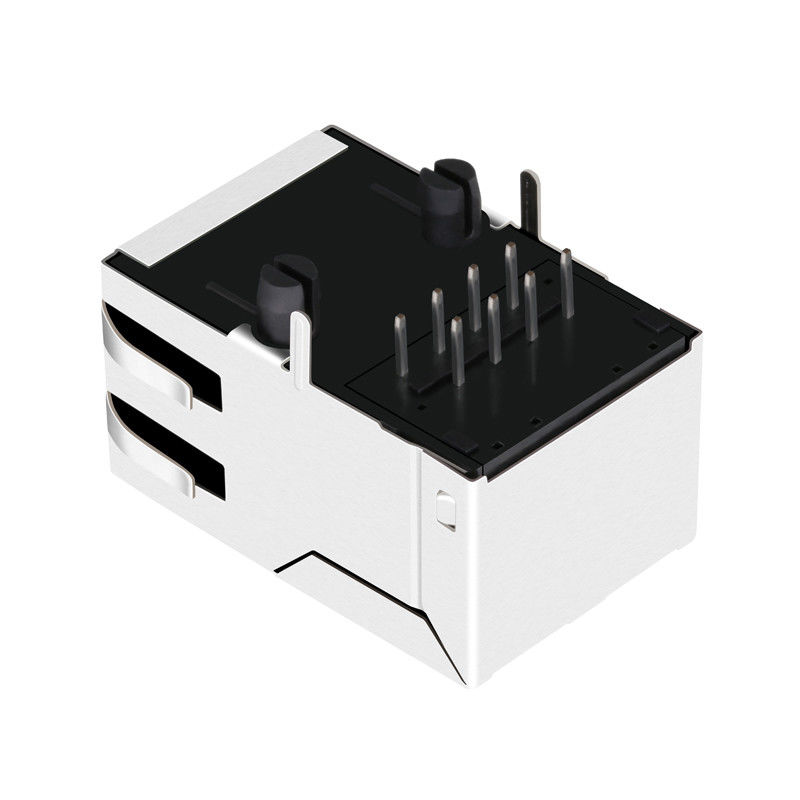

Large Image :  LPJ6049CNL 1x1 Port 100 Base -T Magnetics POE RJ45 Connector

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: XFVOIP6SF-CT1-4M

Payment & Shipping Terms:

Minimum Order Quantity: 50/500/5000
Price: Supportive
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock or 30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Detailed Product Description
Bel Spec: XFVOIP6SF-CT1-4M Ethernet: 10/100 Base-T
Samples: Available RJ45 Connector: 1X1 With POE
File: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

1x1 port ethernet pcb connector

,

shielded 1000base t connector

LPJ6049CNL POE RJ45 Connector 1x1 Port 100 Base -T Magnetics XFVOIP6SF-CT1-4M



Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics & PoE, Without LED,Tab Up,RoHS
LINK-PP Part Number LPJ6049CNL
Other Part Number XFVOIP6SF-CT1-4M
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 6
Diodes YES
Latch

TAB UP

Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.530
Package Height (mm) 13.45
Package Length (Inches) 0.994
Package Length (mm) 25.25
Package Width (Inches) 0.636
Package Width (mm) 16.15
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
