Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XRJD-S-24-8-8-5
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
XRJD-S-24-8-8-5 |
Analogue PN: |
LPJE108-4AWNL |
Family: |
Rj45 With Transformer Inside |
Files: |
3D STEP IGS PDF Datasheet |
Temperature: |
-40°C ~ 85°C |
Spec: |
XRJD-S-24-8-8-5 |
Analogue PN: |
LPJE108-4AWNL |
Family: |
Rj45 With Transformer Inside |
Files: |
3D STEP IGS PDF Datasheet |
Temperature: |
-40°C ~ 85°C |

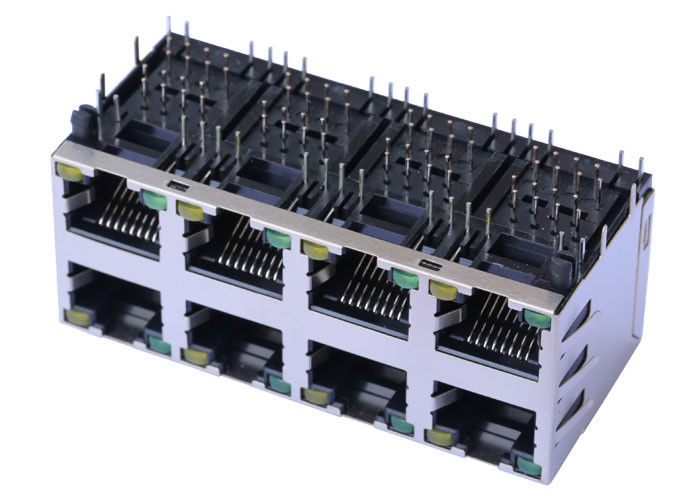

| 2X4 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer, Yellow/Green LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJE108-4AWNL |
| Other Part Number |
XRJD-S-24-8-8-5
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Diodes | NO DIODES |
| LED Option | Green/Green LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.000 |
| Package Height (mm) | 25.4 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.15 |
| Package Width (Inches) | 2.514 |
| Package Width (mm) | 63.86 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
