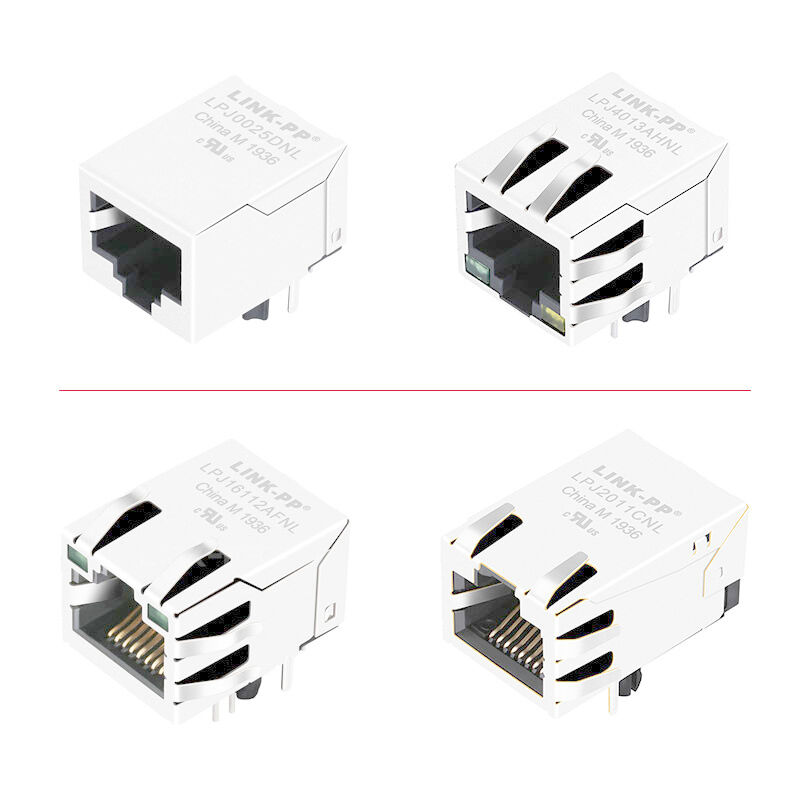

1 X 1000 Mbit Ehternet Cross LPJG4801Q27NL RJ45 Modular Jack

1 X 1000 Mbit Ehternet Cross LPJG4801Q27NL RJ45 Modular Jack
1 X 1000 Mbit Ehternet Cross LPJG4801Q27NL RJ45 Modular Jack 1 X 1000 Mbit Ehternet Cross LPJG4801Q27NL RJ45 Modular Jack

Large Image :  1 X 1000 Mbit Ehternet Cross LPJG4801Q27NL RJ45 Modular Jack

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: S11-MT-0004

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Pn#: S11-MT-0004 Equivalent: LPJG4801Q27NL
Interface: 10/100/1000Base-T Samples: Available 2-3 Pcs
LED Option: GREEN/ORANGE&GREEN File: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

10/100 base-t rj45 multi port jack

,

through hole low profile rj45 jack

S11-MT-0004 RJ45 Modular Jack 1 x 1000 Mbit Ehternet Cross LPJG4801Q27NL




1. 1 x 10/100/1000 Mbit Ehternet

2. Right Angle Rj45 8 Position

3. Tab-down, LED Inline

4. Hipot from Imput to output : 1500Vrms



Description:

Single Port Modular RJ45 Jack with 10/100/1000 Base-T Integrated Magnetics,Green/Orange&Green LED,Tab Down,RoHS
LINK-PP Part Number LPJG4801Q27NL
Other Part Number S11-MT-0004
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/ORANGE&GREEN
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.30
Package Length (mm) 21.25
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

XRJD-S-24-8-8-5 2x4 Port Stacked Rj45 Right Angle Without Transformer LPJE108-4AWNL



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
