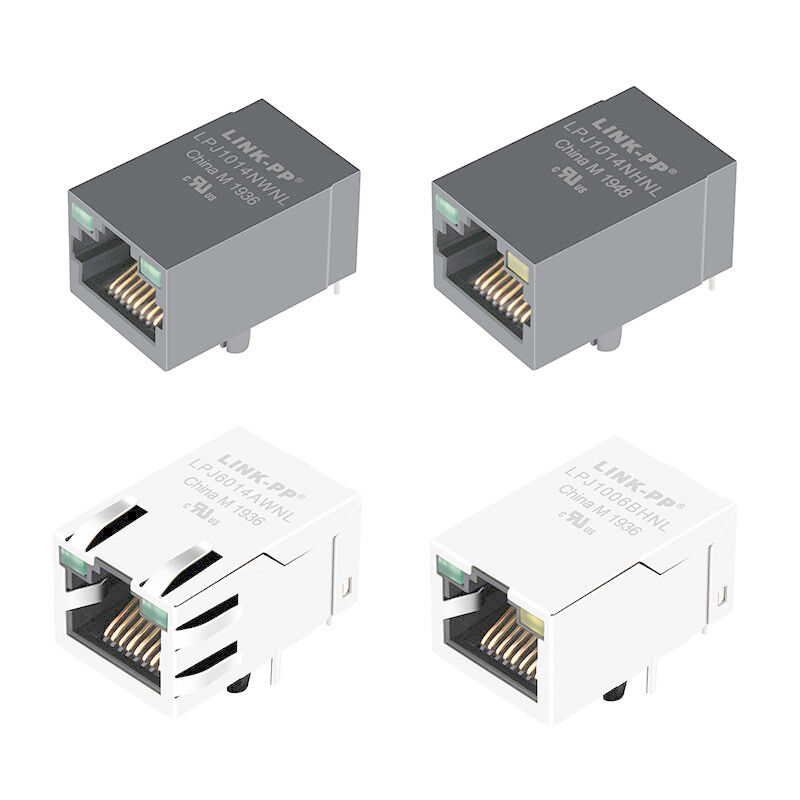

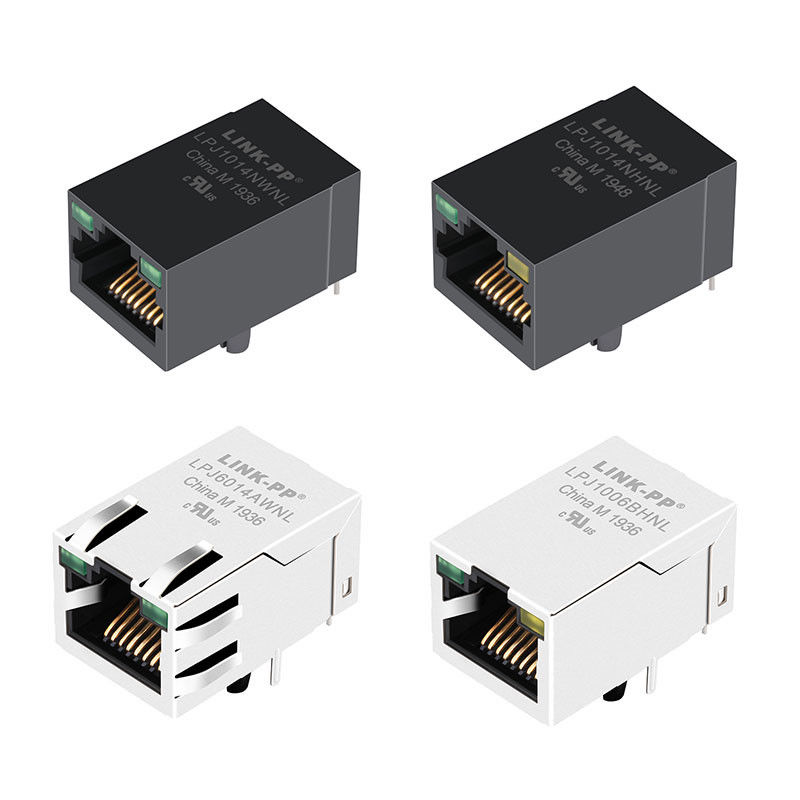

LPJ16611AFNL 1X1 Single Socket 21.25mm Length Rj45 Ethernet Jack

Name: LPJ16611AFNL 1X1 Single Socket 21.25mm Length Rj45 Ethernet Jack
Brand: LINK-PP
SKU: XFATM2E-CTGGG1-4MS / XFATM2E-CTGxu1-4MS
Price: 0.05 USD
Availability: InStock
Rating: 4.7 (128 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM2E-CTGGG1-4MS / XFATM2E-CTGxu1-4MS

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                10/100 base-t modular rj45 jack, through hole rj45 network jack


Part Number.1:	XFATM2E-CTGGG1-4MS	Pin To Pin:	LPJ16611AFNL
Speed:	10/100 Base-t	Part Number.2:	XFATM2E-CTGxu1-4MS
Led:	Green/green	Trademark:	LINK-PP

Part Number.1:	XFATM2E-CTGGG1-4MS
Pin To Pin:	LPJ16611AFNL
Speed:	10/100 Base-t
Part Number.2:	XFATM2E-CTGxu1-4MS
Led:	Green/green
Trademark:	LINK-PP

LPJ16611AFNL 1X1 Single Socket 21.25mm Length Rj45 Ethernet Jack

XFATM2E-CTGGG1-4MS / XFATM2E-CTGxu1-4MS 1X1 Single Socket RJ45 Jack LPJ16611AFNL

1.10/100 Base-T LPJ16611AFNL LINK-PP

2.1X1 Tab-down Compatible XFATM2E-CTGGG1-4MS / XFATM2E-CTGxu1-4MS

3.Through hole RJ45 modular jack

4.21.25 mm length RJ45 Magjack

1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector

1x1Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer, Green/Green LED,Tab Up,RoHS
LINK-PP Part Number	LPJ16611AFNL
Other Part Number	XFATM2E-CTGGG1-4MS / XFATM2E-CTGxu1-4MS
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Diodes	NO DIODES
LED Option	Green/Green LEDS
Latch	TAB UP
Number of Ports	1x1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.530
Package Height (mm)	13.45
Package Length (Inches)	0.837
Package Length (mm)	21.25
Package Width (Inches)	0.628
Package Width (mm)	15.95
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
