POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer
POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

Large Image :  POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP6018NL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000 pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Detailed Product Description
Item No: LP6018NL Category: Gigabit Rj45 Transformer
Turns Ratio: 1CT : 1CT Mounting: Surface Mount
Size / Dimension: 18.1mm L X 12.1mm W X 6.3mm H Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

24 Pins 5G Magnetic Transformer

,

POE+ 5G Magnetic Transformer

,

LP6018NL

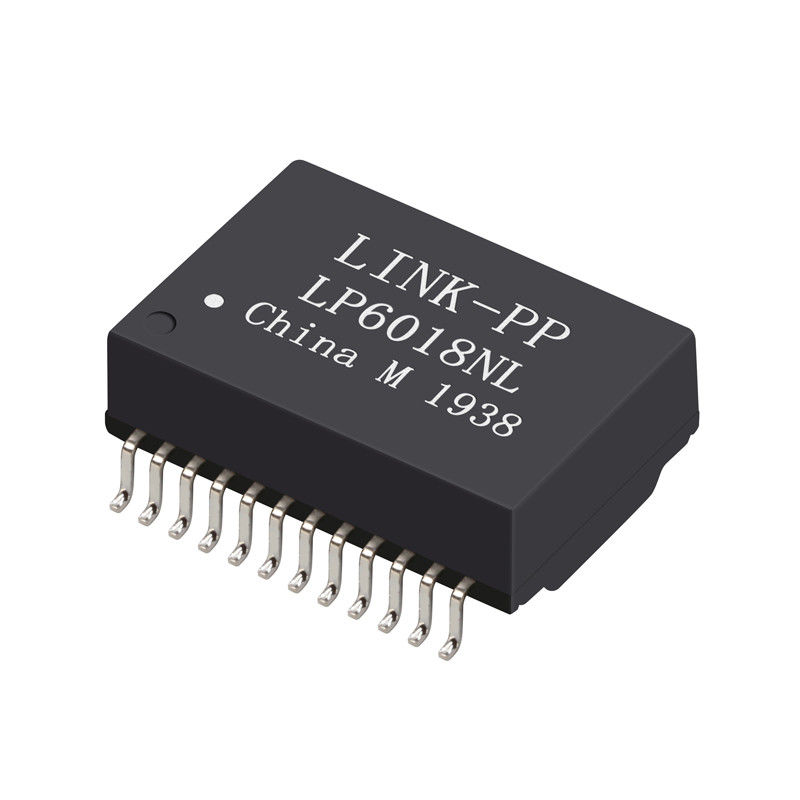

5G Magnetic Transformer With POE+ 60W SMD Single Port 24PINS LP6018NL
  • 5 Gigabit Ethernet Discrete Transformer
  • IEEE802.3ab/af Compliant
  • UL/EN60950 Recognized
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Patented Open Frame Construction
Number of ports Applications Turns Ratio Power Over Ethernet
LP6018NL Lan Ethernet(PoE+) 1:1 IEEE 802.3/IEEE 802.3af



Packaging Cores Per Port Mounting Type Temperature
Reel , Carton 8 SMT/SMD 0 TO + 70



Pins Number Shielding Isolation Voltage LED Color
24 Pins -- 1500 Vrms ---


Electrical Specification @25℃

1.Insertion Loss(dB Max): 0.3-1MHz: -1.1 1-65MHz: -0.8
65-100MHz: -1.0 100-125MHz: -1.2
2.Return Loss(dB Min @100 OHM): 0.5-40MHz: -18
40-100MHz: -12-20LOG(f/80MHz)
3.Crosstalk(dB Min): 0.3-100MHz: -33-20LOG(f/100MHz)
4.CM TO CM REJ: 0.3-100MHz: -30dB Min
5.CM TO DM REJ: 0.3-100MHz: -35dB Min
6.Turns Ratio: PRI:SEC= 1CT:1CT ±2%
7.Inductance(100KHz/0.1V@11mA): 350uH Min
8.Balanced DC Line Current: 350mA Max @ 57VDC Continuous
9.Hipot: 1500Vrms/0.5mA
10.Operating Temperature: -40℃~+85℃.



NOTES:


1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage



☛ Designer and Manufacturer for 18 years.

2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.



POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer 0



POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer 1POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer 2
