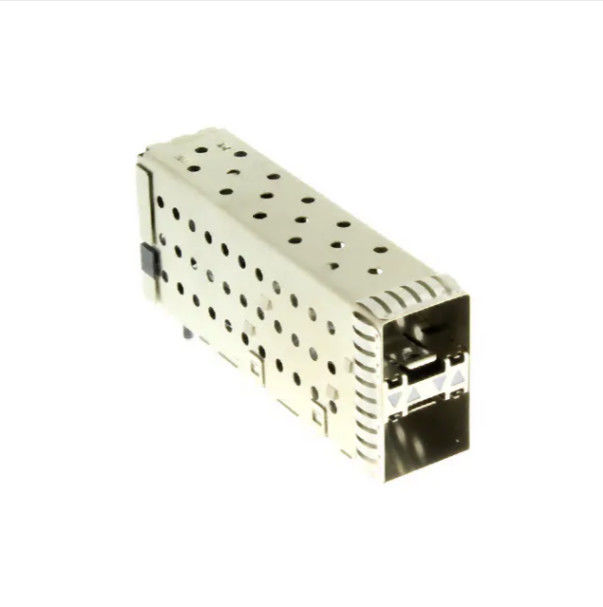

1-2007492-5 2x1 Stacked SFP+ Cage Assembly Through Hole Press-Fit

The 1-2007492-5 is a stacked SFP+ cage assembly with integrated connector designed for high-density pluggable I/O applications that require reliable signal performance, strong EMI containment, and durable PCB mounting. With a 2 x 1 port matrix, through-hole press-fit termination, and EMI enhanced construction, this cage assembly is built for compact networking and communication equipment where mechanical stability and signal integrity matter.

This model features a nickel silver cage, internal/external EMI springs, and an included lightpipe, making it a practical choice for engineers designing advanced board-level interconnect systems. Its wide operating temperature range of -55 to 105 °C also supports demanding industrial and networking environments.

1-2007492-5 2x1 SFP+ Cage Key Features

• High Port Density: The 2x1 stacked matrix configuration provides two ports in a compact footprint.
• High-Speed Performance: Optimized for data rates up to 16 Gb/s.
• Integrated Design: Comes with an integrated 40-position connector and included lightpipes for clear status signaling.
• Advanced EMI Shielding: Features both internal and external EMI springs to ensure signal purity and meet stringent electromagnetic interference standards.
• Robust Construction: Manufactured from Nickel Silver with gold or gold flash over palladium-nickel plating for maximum conductivity and corrosion resistance.

​

Technical Specifications of 1-2007492-5 SFP+ Cage Assembly

1-2007492-5 SFP+ Cage Drawing

1-2007492-5 Mechanical & Material Details

• Cage Material: Nickel Silver (excellent thermal and EMI properties).
• Contact Mating Area: Gold or Gold Flash over Palladium Nickel (.76 µm thickness).
• Tail Plating: Tin over Nickel.
• Termination Post Length: 3 mm [0.118 in].
• Lightpipe Included: Yes.

Stacked SFP+ Cage Typical Applications

The 1-2007492-5 is ideal for "EMI Enhanced" applications requiring high-speed signal transmission, including:

• Switches and Routers
• Storage Area Networks (SAN)
• Network Interface Cards (NICs)
• High-Performance Computing (HPC)
• Telecommunications Base Stations

Design and Performance Notes for 1-2007492-5  SFP+ Cage with Lightpipe

The 16 Gb/s maximum data rate makes this cage assembly suitable for SFP+ implementations that need dependable high-speed performance. The -55 to 105 °C operating range supports use in harsher environments, while the nickel silver cage material contributes to a durable mechanical structure.

The 0.8 mm centerline and 40-position layout are important details for PCB and mechanical integration, especially when aligning front-panel spacing and board-level constraints. For teams working on enclosure fit, signal routing, and EMI control, these details matter just as much as the electrical specification.

Frequently Asked Questions About 1-2007492-5 Press-Fit SFP+ Cage

The 1-2007492-5 2x1 stacked SFP+ cage is a compact, EMI-conscious, press-fit cage assembly designed for reliable high-speed interconnect applications. With integrated connector construction, robust mechanical features, and a wide operating temperature range, it is a practical choice for engineers building dense networking and communication equipment.

1. What is the 1-2007492-5?

The 1-2007492-5 is a 2x1 stacked SFP+ cage assembly with an integrated connector designed for high-speed pluggable I/O applications.

2. What data rate does this SFP+ cage support?

The maximum data rate listed is 16 Gb/s.

3. How is the cage mounted to the PCB?

It uses through-hole press-fit termination.

4. Is this cage suitable for EMI-sensitive designs?

Yes. It is specified as EMI enhanced and includes internal/external EMI springs.

5. Does this part include a lightpipe?

Yes, the specification lists Included Lightpipe: Yes.
