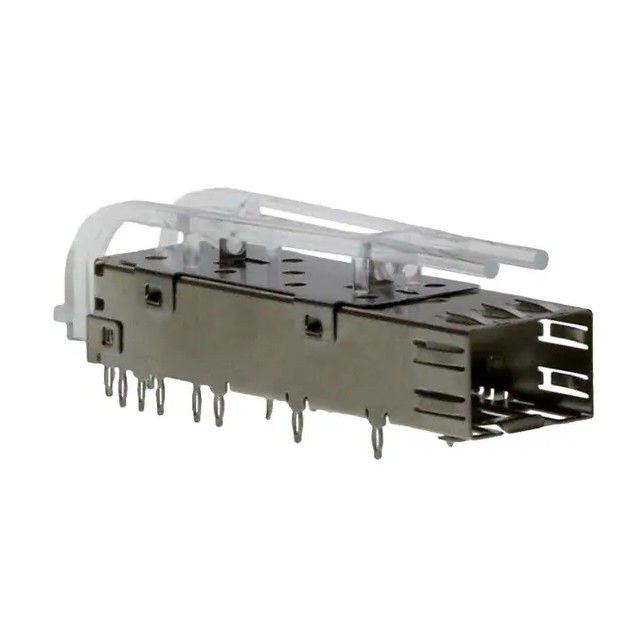

1367629-2 Position SFP Cage Connector Press-Fit Through Hole Right Angle

The 1367629-2 is a high-performance, single-port SFP (Small Form-factor Pluggable) cage assembly engineered for reliable high-speed data transmission. Designed with a Press-Fit (Through-Hole) termination style, this cage ensures a secure mechanical and electrical connection to the PCB without the need for complex soldering.

This 20-position SFP cage is optimized for signal integrity, featuring integrated internal and external EMI springs for superior electromagnetic interference containment and an integrated standard lightpipe for clear port status indication.

Key Features and Technical Specifications of 1367629-2 SFP Cage Connector

Professional-Grade Engineering Benefits

1. Robust Mechanical Connectivity

The Press-Fit termination technology allows for a cold-welded, gas-tight connection that withstands mechanical stress better than traditional surface mount options. With a 3mm termination post length, it is ideal for standard high-density PCB layouts.

2. Enhanced Signal Integrity & EMI Protection

Equipped with both internal and external EMI springs, the 1367629-2 provides a robust shield against electromagnetic interference. This design ensures that your high-speed signals (up to 4 Gb/s) remain clean and compliant with industry standards for noise reduction.

3. Integrated Visual Diagnostics

Unlike basic cage assemblies, this model includes a factory-installed standard lightpipe. This simplifies the assembly process for hardware engineers by providing a built-in path for LEDs to signal link status and activity directly at the port interface.

4. Extreme Environment Reliability

Designed to operate in a wide temperature envelope from -55°C to +85°C, this SFP cage is suitable for industrial networking, telecommunications, and aerospace applications where thermal stability is critical.

1367629-2 SFP Cage Typical Applications

The 1367629-2 SFP cage assembly is a strong fit for:

• SFP networking equipment
• Signal transmission modules
• Communications hardware
• Industrial electronics
• PCB assemblies requiring press-fit SFP cages
• Equipment that benefits from EMI containment and lightpipe integration

Dimensions & Installation

• Recommended PCB Thickness: 1.5 mm [0.059 in]
• Pitch: 0.8 mm
• Sealable: No
• Heat Sink Compatible: No (Standard profile for space-constrained layouts)
