Dual Port Unshielded 8p8c 1x2 RJ45 Jack Connector E5J88-00AJG2-L

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: RoHS,SGS, UL,CE, ISO9001:2008

Model Number: E5J88-00AJG2-L

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: $0.11-$10

Packaging Details: Tray

Delivery Time: 3-5 days

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

E5J88-00AJG2-L

,

1x2 Pulse RJ45 Connector

,

E5J88-00AJG2-L RJ45 1x2

PN:
E5J88-00AJG2-L
Connector Gender:
Female RJ45 1x2
Mounting Style:
Through Hole
Mounting Angle:
Right Angle
Operation Temperature:
-40°C - +85°C
Wave Soldering Temperature:
255°C~265°C (5~10s)
PN:
E5J88-00AJG2-L
Connector Gender:
Female RJ45 1x2
Mounting Style:
Through Hole
Mounting Angle:
Right Angle
Operation Temperature:
-40°C - +85°C
Wave Soldering Temperature:
255°C~265°C (5~10s)

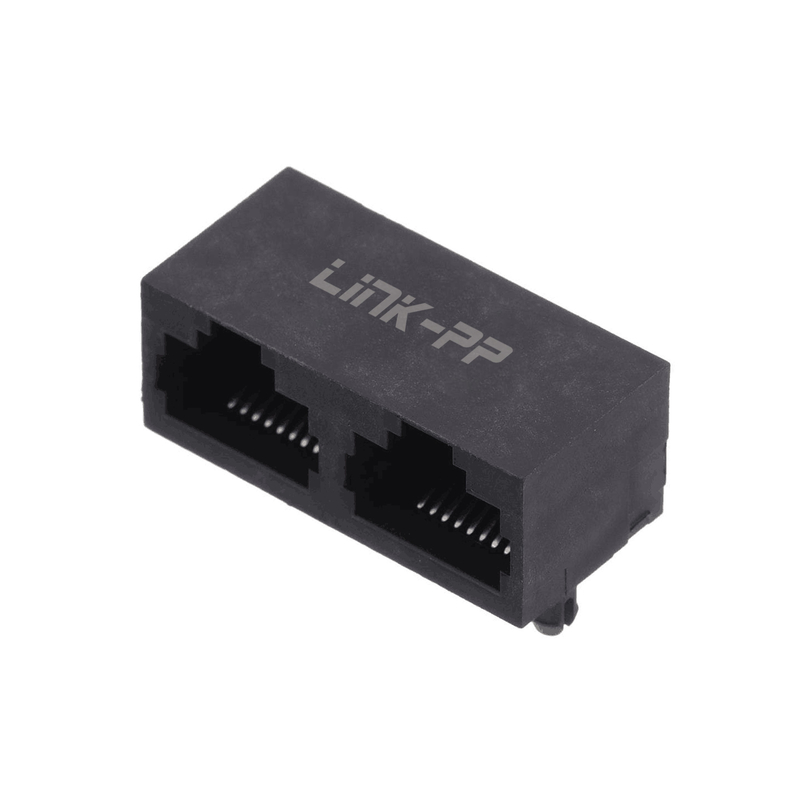

Dual Port Unshielded 8p8c 1x2 RJ45 Jack Connector E5J88-00AJG2-L



E5J88-00AJG2-L 1x2 THT RJ45 Connector TAB-UP Side Entry

RJ45 Connector Through Hole Description:

The E5J88-00AJG2-L RJ45 Connector with Through Hole Technology is designed for reliable connectivity. It features a tab-up 1X2 port configuration and side entry angle for efficient installation. With a temperature range of -40°C to +85°C, the E5J88-00AJG2-L is built to withstand diverse environmental conditions. The THT mounting style ensures secure attachment to the printed circuit board (PCB), enhancing stability and durability. This connector is equipped with 8P8C pins, supporting standard network configurations. Additionally, it comes without EMI/gasket and LEDs, offering flexibility in design and usage. Make a strong and durable connection with this E5J88-00AJG2-L Telephone and Telecom Connector.

Specifications of E5J88-00AJG2-L RJ45 Modular Connector:

Connector Type

RJ45 TWO PORT SIDE ENTRY JACK

Tab Direction Tab Up
Automotive (Y/N) No
Mounting THT
Number of Ports 1X2
Data Rate CAT 3
Entry Angle SIDE
Body Orientation Right Angle
LED/Light Pipe NO LEDS
EMI / Gasket Without
Shielding Unshielded
Length  31.6 mm
Width  15.0 mm
Height 12.6 mm
Termination Method Solder
Temperature -40°C - +85°C
RoHS RoHS Compliant
ELECTRICAL
Current Rating 1.5 AMP
Voltage Rating 125 VAC RMS
Insulation Resistance 1000 MOhm
Contact Resistance 40 MOhm Max
Dielectric Strength 1000 VDC RMS 60HZ 1MIN
Operating 750 Cycles MIN
Service OEM&ODM
MECHANICAL
Housing Material Glass Fiber Filled Nylon, UL94V-0 Black
Insert Material Glass Fiber Filled Nylon, UL94V-0 Black
Back Plate Material Glass Fiber Filled Nylon, UL94V-0 Black
Contact Material Phosphor Bronze 035mm Thickness
Plating Gold Plating Over Nickel
PCB Retention Pre-Solder 1 LB Min.
PCB Retention Post-Solder 10 LBs Min.

E5J88-00AJG2-L 1x2 RJ45 Datasheet:

E5J88-00AJG2-L E5J88-00AJG2-L 1x2 RJ45 Datasheet
