Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH

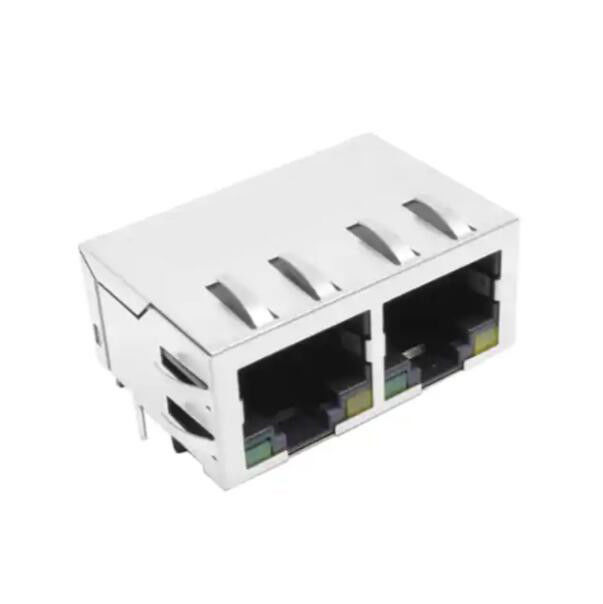

Model Number: JXR8-1003NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part No: |
JXR8-1003NL |
Orientation: |
90° Angle (Right) |
Interface: |
NO Magnetic |
LED: |
Without |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part No: |
JXR8-1003NL |
Orientation: |
90° Angle (Right) |
Interface: |
NO Magnetic |
LED: |
Without |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Part Status | Active | |
|---|---|---|
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 2 | |
| Number of Rows | 1 | |
| Mounting Type | Panel Mount, Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder Paste | |
| Shielding | Shielded, EMI Finger | |
| Ratings | Cat5e | |
| Features | Board Guide | |
| LED Color | Green - Yellow | |
| Ingress Protection | - | |
| Tab Direction | Down | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15.0µin (0.38µm) | |
| Housing Material | Thermoplastic | |
| Operating Temperature | -40°C ~ 85°C |
