Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2149699-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
2149699-1 |
Wavelength: |
- |
Emitter: |
N/A |
Voltage: |
3.3V |
Applications: |
Switch Interfacing |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
2149699-1 |
Wavelength: |
- |
Emitter: |
N/A |
Voltage: |
3.3V |
Applications: |
Switch Interfacing |
Mounting: |
Pluggable,SFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | 2149699-1 |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | CXP |
| Product Name: | CXP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
| Part Status | Active | |
|---|---|---|

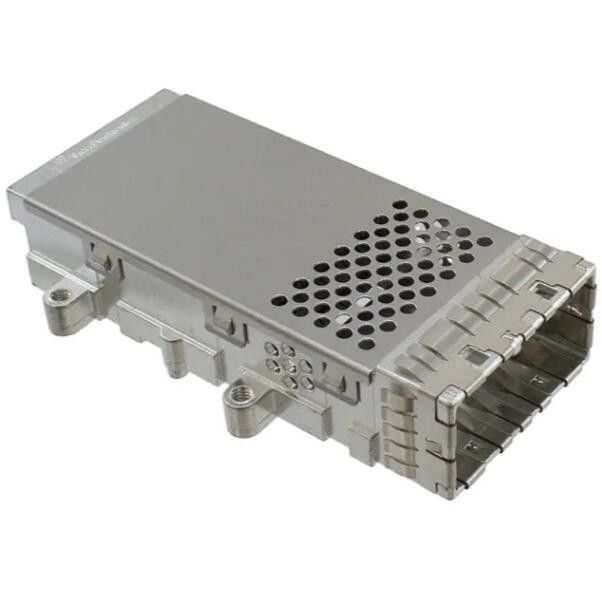

| Connector Style | Receptacle with Cage | |
| Connector Type | CXP | |
| Number of Positions | 84 | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Features | Board Guide, EMI Shielded, Flange | |
| Contact Finish | Gold |
|
Feature Description:
|
● RoHS-6 Compliant (see Table 1)
● Designed for Industry-Standard, Small Form Factor Pluggable (SFP) Ports
● Compliance with IEEE 802.3:2005
● Custom RJ-45 connector with integrated magnetics
● Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
● Low power, high performance 1.25 Gbd SerDes integrated in module
● Single +3.3 V power supply operation
● Auto-negotiation per IEEE 802.3:2005 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
● Compatible to both shielded and unshielded twisted pair category 5 cable
● Available in Commercial Temperature (-5~70 °C) and Industrial Temperature (-40°C~85°C)
● 10/100/1000BASE-T operation available with SGMII host systems.
● Several configurations
Other Part Number:
ABCU-5730RZ -5°C~70°C RX_LOS enabled
ABCU-5740RZ -5°C~70°C RX_LOS disabled
ABCU-5730GZ -5°C~70°C RX_LOS enabled and Isolated ground
ABCU-5730ARZ -40°C~85°C RX_LOS enabled
ABCU-5740ARZ -40°C~85°C RX_LOS disabled
ABCU-5731ARZ -40°C~85°C SGMII RX_LOS enabled
ABCU-5741ARZ -40°C~85°C SGMII RX_LOS disabled
ABCU-5741AGZ -40°C~85°C SGMII RX_LOS disabled and Isolated ground
