Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1888481-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
1888481-1 |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP (MPO) |
Mounting: |
Pluggable,XFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
1888481-1 |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP (MPO) |
Mounting: |
Pluggable,XFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | 1888481-1 |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | XFP+ |
| Product Name: | XFP+ Optical Transceivers |
| Status Available: | Limited Release |
| RoHS: | RoHS-6 Compliance |
| Part Status | Active | |
|---|---|---|

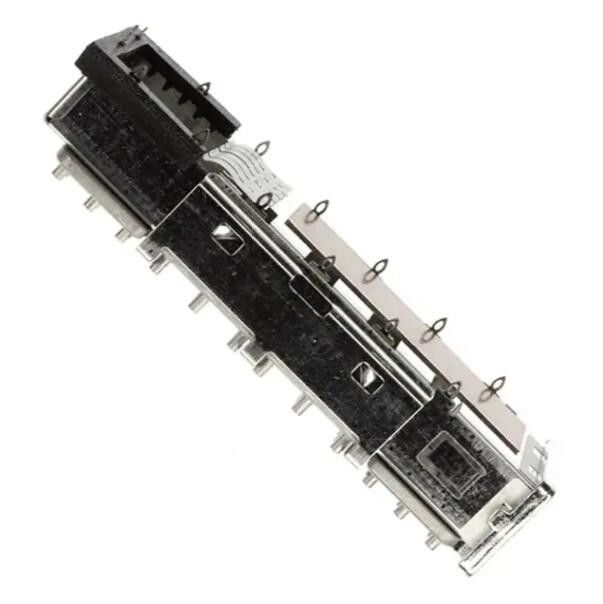

| Connector Style | Cage with Heat Sink | |
| Connector Type | XFP | |
| Number of Positions | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Features | EMI Shielded |
|
Feature Description:
|
● Compliant to the 40GBASE-SR4 and nPPI Specification per IEEE 802.3ba D3.2 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
● Compliant to the industry standard SFF-8436 QSFP+ Specification Revision 3.5
● Power level 1: max power < 1.5 W
● High port density: 21mm horizontal port pitch
● Push-pull tab: ease of module insertion and extraction
● Operates at 10.3125 Gbps per channel with 64b/66b coded data for 40GbE application and at 10 Gbps with 8b/10b compatible coded data for 40G-IB-QDR application
● Links up to 100 m using OM3 fiber and 150 m using OM4 fiber
● Supports optical interoperability with 10GBASE-SR modules per IEEE 802.3ae standard provided the receiver overload of 10G modules sustains up to 2.4dBm input optical power
● 0 to +85 °C case temperature operating range compliant to the specs in the datasheet while the module can be cold started as low as -20 °C
● Proven high reliability 850nm technology: Avago VCSEL array transmitter and PIN array receiver
● Hot pluggable transceiver for servicing and ease of installation
● Two Wire Serial (TWS) interface with maskable interrupts for expanded functionality
● Utilizes a standard 12/8 lane optical fiber with MTP (MPO) optical connector for high density and thin light-weight cable management
