Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2299940-2
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
2299940-2 |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL Array |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,ZQSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
Specifications: |
2299940-2 |
Fiber Type: |
Multimode Glass |
Emitter: |
VCSEL Array |
Voltage: |
3.3V |
Applications: |
Telecom/Datacom Systems |
Connector: |
MTP(MPO) |
Mounting: |
Pluggable,ZQSFP+ |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1(Unlimited) |
| Specifications: | 2299940-2 |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | ZQSFP+ |
| Product Name: | ZQSFP+ Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
| Part Status | Active | |
|---|---|---|

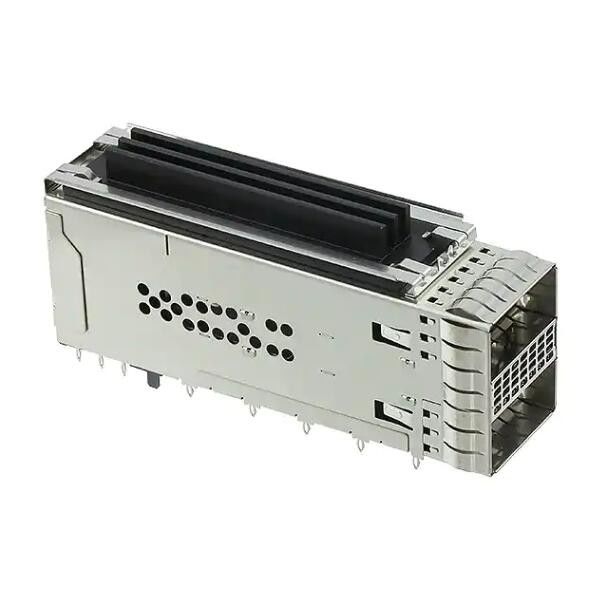

| Connector Style | Receptacle with Cage, Ganged (2x1) with Heat Sink | |
| Connector Type | ZQSFP+ | |
| Number of Positions | 76 (38 x 2) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Features | EMI Shielded | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
|
Feature Description:
|
● Compliant to the 100GBASE-SR10 and CPPI Specifications per IEEE 802.3ba-2010 and supporting InfiniBand QDR/DDR/SDR applications
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
● Multi-rate Capability from 1 Gbps to 10.5 Gbps
● High Channel Capacity: >100 Gbps per Module
● Operates at 10.3125 Gbps per Channel with 64b/66b Encoded Data for 100GbE application and at 10 Gbps with 8b/10b Encoded Data for IB-QDR Application
● Hot Pluggable for Easy System Installation
● Link Distance up to 100 m using OM3 Fiber and 150 m using OM4 Fiber
● 0 to 70 °C Case Temperature Operating Range
● Low Power Dissipation: < 3 W
●Proven High Reliability 850nm Technology: Avago VCSEL Array Transmitter and Avago PIN Array Receiver
● Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
● Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
● Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
● Status per Channel: Tx Fault, Electrical (Transmitter) and Optical (Receiver) LOS, and Alarm Flags
● Programmable Equalization and De-Emphasis Settings for System Performance Optimization
● Standard 24 Lane Optical Fiber with MTP (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
