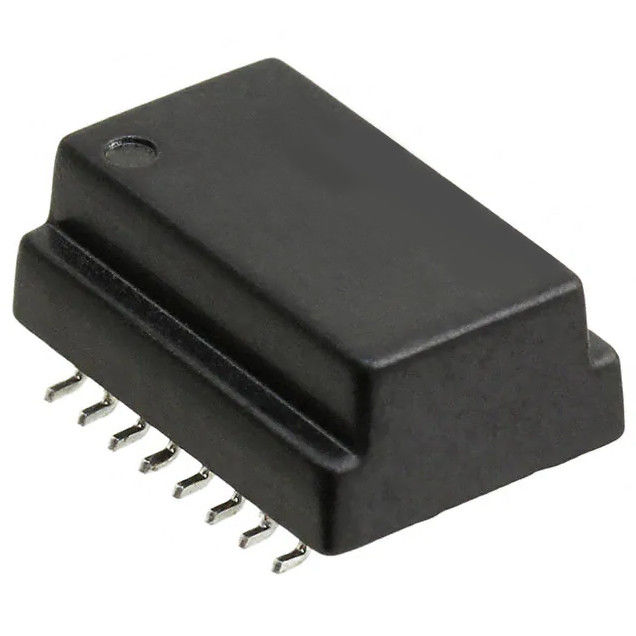

SMD 10Mbps Lan Magnetic Transformers H1100FNL H1100FNLT 2CT/1CT TX

SMD 10Mbps Lan Magnetic Transformers H1100FNL H1100FNLT 2CT/1CT TX
SMD 10Mbps Lan Magnetic Transformers H1100FNL H1100FNLT 2CT/1CT TX

Large Image :  SMD 10Mbps Lan Magnetic Transformers H1100FNL H1100FNLT 2CT/1CT TX

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1100FNL / H1100FNLT
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
Specifications: H1100FNL / H1100FNLT P/N: LPxxxxNL
Ethernet: 10Mbps Mounting: SMD
Samples: Free Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

SMD Lan Magnetic Transformers

,

10Mbps Lan Magnetic Transformers

,

2CT/1CT Ethernet Isolation Transformer

SMD 10Mbps Lan Magnetic Transformers H1100FNL H1100FNLT 2CT:1CT TX 1CT:1CT RX

APPLICATION-LAN ETHERNET TRANSFORMER/CHOKE
NUMBER OF PORTS SINGLE
PACKAGE SMT
PACKAGE HEIGHT MM 5.994
PACKAGE LENGTH MM 12.700
PACKAGE WIDTH MM 9.652
POE RATING NON-POE
SPEED 100BASE-TX
TEMPERATURE 0 TO 70



Manufacturer Pulse Electronics Network
Series -
Part Status Active
Transformer Type LAN 10G Base-T
Inductance 350µH
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 2CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.236" (5.99mm)
Operating Temperature 0°C ~ 70°C



Applications:



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



1100 staff,

100% test

Flexible delivery time

Free Samples
