Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

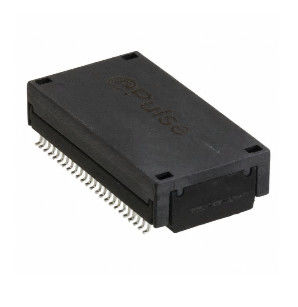

Model Number: H5012FNL / H5012FNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
H5012FNL / H5012FNLT |
Ethernet: |
1000 Base-T |
Files: |
PDF / Datasheet / 3D / IGS / Step /Stp |
Samples: |
Available 4 PCS |
Port: |
Single |
Price: |
Supportive |
Item: |
H5012FNL / H5012FNLT |
Ethernet: |
1000 Base-T |
Files: |
PDF / Datasheet / 3D / IGS / Step /Stp |
Samples: |
Available 4 PCS |
Port: |
Single |
Price: |
Supportive |
|
Part Status
|
Active
|
|
Transformer Type
|
LAN 10/100/1000 Base-T
|
|
Inductance
|
350µH
|
|
ET (Volt-Time)
|
-
|
|
Turns Ratio - Primary:Secondary
|
1CT:1CT Transmitter, 1CT:1CT Receiver
|
|
Mounting Type
|
Surface Mount
|
|
Size / Dimension
|
1.095" L x 0.590" W (27.81mm x 14.99mm)
|
|
Height - Seated (Max)
|
0.285" (7.24mm)
|
|
Operating Temperature
|
0°C ~ 70°C
|
NOTES:
1.Designed to support application
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.Maximum Reflow Temperature is 250℃,5 Sec.
5.Meets IEEE 802.3 specification
6.UL Certification: File Number E484635
7.Compliance with ROHS requirements
8.100% Tested (Not Just Batch Tested)
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
