Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-0032SXCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Within 3 Days Rapid Delivery
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
LAN Transformer |
Part Status: |
Active Ample Inventory |
Samples: |
Free |
Construction: |
Open Frame |
Ethernet: |
PoE+ |
Number Of Ports: |
Single Port |
Speed: |
10/100 Base-T |
Pin Number: |
16 |
Mounting Type: |
SMT |
Item: |
LAN Transformer |
Part Status: |
Active Ample Inventory |
Samples: |
Free |
Construction: |
Open Frame |
Ethernet: |
PoE+ |
Number Of Ports: |
Single Port |
Speed: |
10/100 Base-T |
Pin Number: |
16 |
Mounting Type: |
SMT |

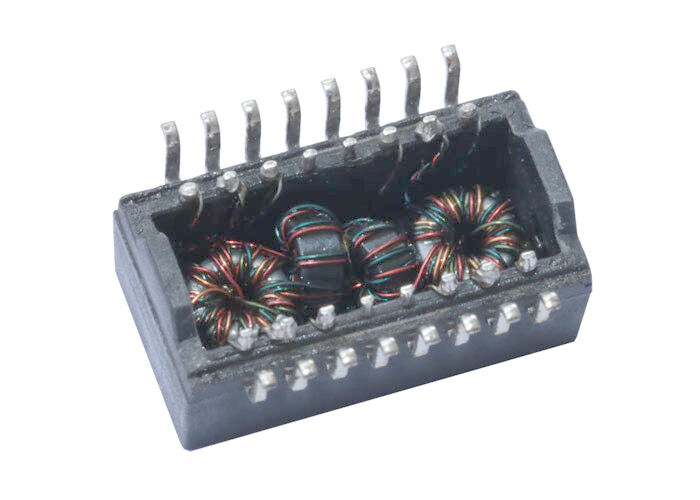

| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD, Rohs | |
| Part Number | HST-0032SXCR |
| Speed | 10/100BASE-T |
| Number of Ports | Single Port |
| Number of Pins | 16 |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| AutomDX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Professional Certificate | ISO9001:2008/UL/Supplier Assessment Certificate |
| Hi-pot | 1500Vrms |
| Construction | OPEN FRAME |
| OCL | 350uh min |
| Package Height (mm) | 5.28 |
| Package Length (mm) | 12.7 |
| Package Width (mm) | 7.11 |
| Operating Temperature Range | -40 TO + 85℃ |
| Package | Tape & Reel |
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,15mA
● Suitable for PoE+ applications(700mA@57V continuous).
● Designed for reflow soldering at temperatures up to 245 ℃
● RoHS compliance.
Q1: What Ethernet standards is the HST-0032SXCR compatible with?
A1: The HST-0032SXCR is designed for 10/100Base-T Ethernet applications and fully complies with IEEE 802.3 standards, including support for Power over Ethernet Plus (PoE+).
Q2: Does the HST-0032SXCR support PoE+ (IEEE 802.3at)?
A2: Yes, it supports PoE+ (IEEE 802.3at), which allows for up to 30W of power delivery over Ethernet cables, suitable for powering devices like IP cameras, VoIP phones, and wireless access points.
Q3: What is the isolation voltage of this transformer?
A3: The HST-0032SXCR offers a minimum Hi-Pot isolation voltage of 1500 Vrms, ensuring robust electrical separation between circuits.
Q4: What is the operating temperature range for the HST-0032SXCR?
A4: This transformer operates reliably in harsh environments with a wide temperature range of -40°C to +85°C, ideal for industrial and outdoor networking equipment.
Q5: What is the turns ratio of this transformer?
A5: The turns ratio for both the transmit (TX) and receive (RX) channels is 1:1, supporting effective signal coupling and EMI suppression.
Q6: Is the HST-0032SXCR RoHS compliant?
A6: Yes, it is fully RoHS-compliant and manufactured in accordance with environmental standards, making it suitable for global applications.
Q7: What is the maximum insertion loss for this model?
A7: The typical insertion loss from 1 MHz to 100 MHz is -1.4 dB, which ensures excellent signal performance for Ethernet transmission.
