Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-48006SR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HST-48006SR HST-48029SCR |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HST-48006SR HST-48029SCR |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Compliant with IEEE 802.3 standard for 1000Base-T.
● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.
● Capacitance between windings (Cww)30pF Max(at 100kHz, 0.1V).
● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).DCR 1.2Ω Max.
● DCR Pri 0.9ΩMax Sec 1.2Ω Max.

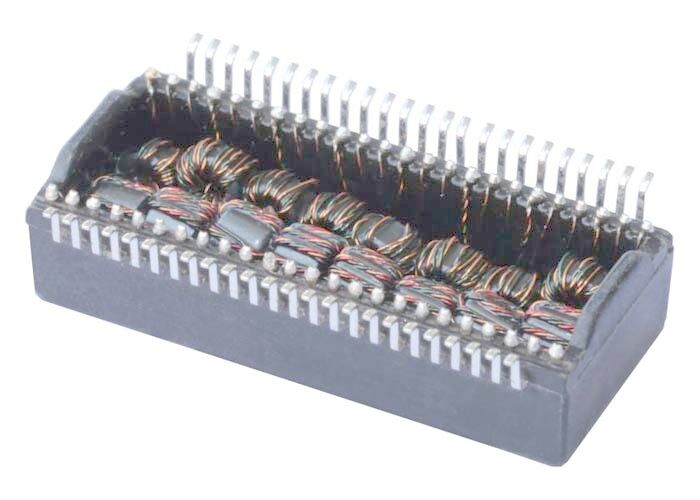

| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Pulse Part Number | HST-48006SR HST-48029SCR |
| Speed | 10/100/1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Package Height (mm) | 4.95 |
| Package Length (mm) | 12.7 |
| Package Width (mm) | 7.25 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
