Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-50006SCR HST-50008SCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
HST-50006SCR HST-50008SCR |
Familiy: |
1000 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
HST-50006SCR HST-50008SCR |
Familiy: |
1000 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
● Compliant with IEEE 802.3 standard for 1000Base-T.
● Primary including 350uH@100KHz 100mV 8mA DC Bias.
● Capacitance between winding: 35pF Max at 100KHz, 1V.
● Leakage indutance 0.5uH Max at 100KHz, 0.1V.
● Designed for reflow soldering at temperatures up to 260℃.
● Storeage temperature -25℃ to +125℃.
Detailed Information:

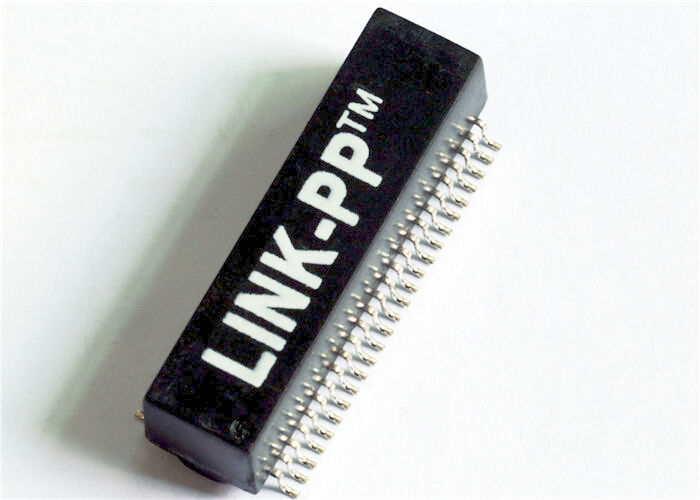

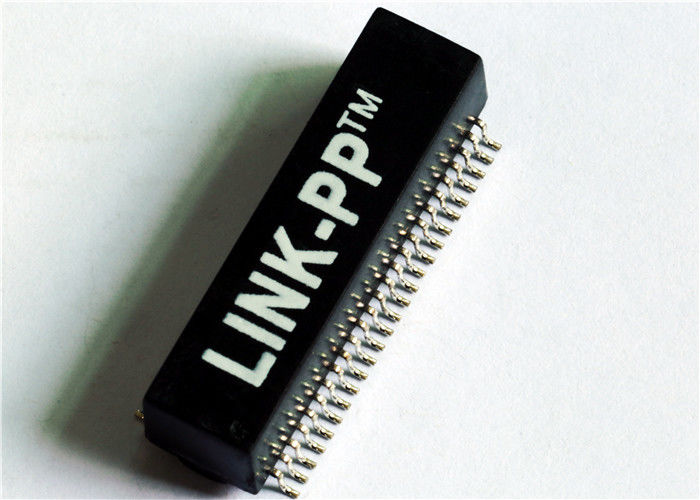

| Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Part Number | HST-50006SCR HST-50008SCR |
| Speed | 1000BASE-T |
| Number of Ports |
Single |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | - |
| Package Height (mm) | 8.40 |
| Package Length (Inches) | - |
| Package Length (mm) | 27.81 |
| Package Width (Inches) | - |
| Package Width (mm) | 7.30 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
