Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

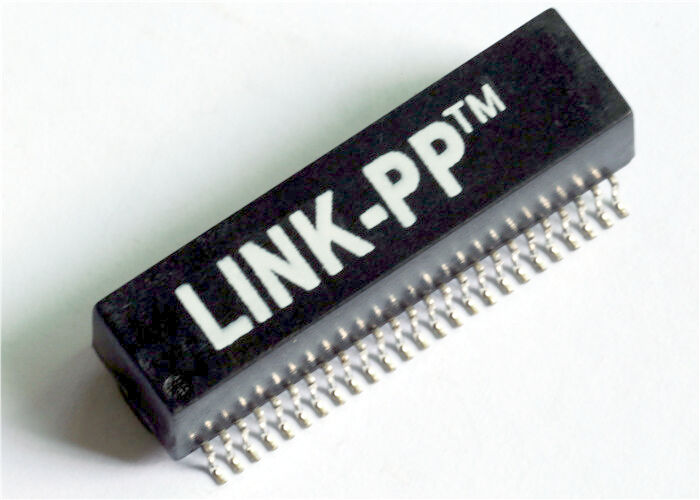

Model Number: HST-50009SCR HST-50010SCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Spec: |
HST-50009SCR HST-50010SCR |
Ethernet: |
1x10 / 100 / 1000Base-T |
Samples: |
Free |
Dimension: |
7.30x27.78x8.40mm |
Operating Temperature: |
0 To + 70 |
Spec: |
HST-50009SCR HST-50010SCR |
Ethernet: |
1x10 / 100 / 1000Base-T |
Samples: |
Free |
Dimension: |
7.30x27.78x8.40mm |
Operating Temperature: |
0 To + 70 |
| LINK-PP Part Number | LPXXXXNL |
| Other Part Number | HST-50009SCR HST-50010SCR |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (mm) | 8.4 |
| Package Length (mm) | 27.78 |
| Package Width (mm) | 7.3 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
1. Designed to support application,such as SOHO(ADSL modems),
LAN-on-Motherboard(LOM),hub and Switches.
2. With Various Turns Ratios
3. 350mA Current Capability
4. Maximun reflow temperature is 250℃ Max, 5 Sec
5. UL Certification: File Number E484635
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer since 1997.
2. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from
small order.
3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
4. What is your delivery time?
Usually within 2-3 working days
5. What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
6. Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
