Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2007567-2
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $5-$25
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
2007567-2 |
Product Type: |
SFP+ Cage Assembly With Integrated Connector |
Data Rate: |
16Gb/s (Max) |
Cage Type: |
2x6 Stacked |
Sealable: |
Yes |
Form Factor: |
SFP+ |
Specifications: |
2007567-2 |
Product Type: |
SFP+ Cage Assembly With Integrated Connector |
Data Rate: |
16Gb/s (Max) |
Cage Type: |
2x6 Stacked |
Sealable: |
Yes |
Form Factor: |
SFP+ |

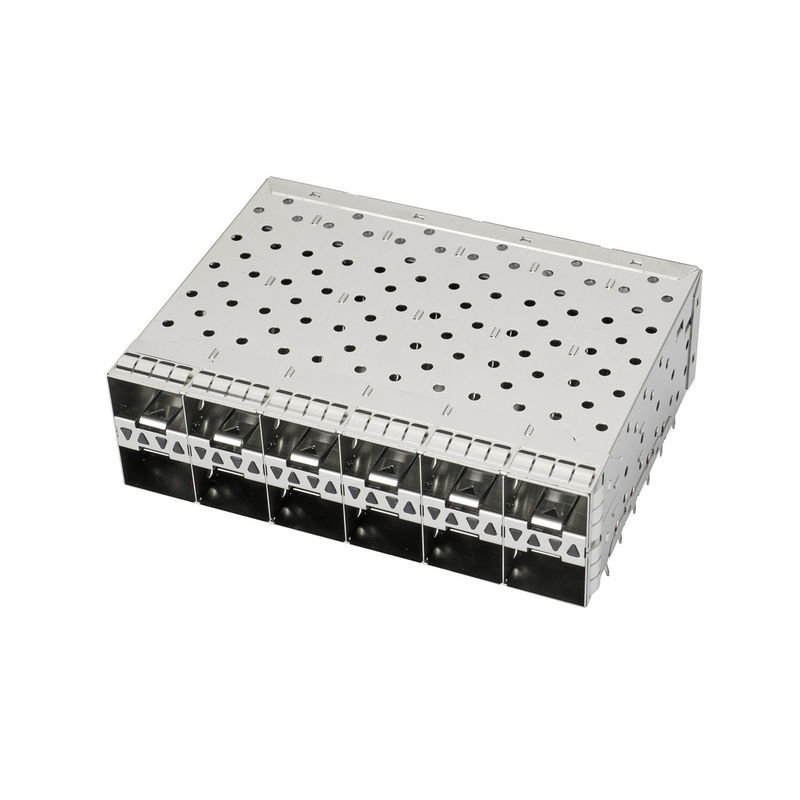

The 2007567-2 is a high-performance SFP+ assembly 2x6 Gasket Inner LP SnPb Plug-in I/O Connector and Cage. This SFP+ Cage assembly with an integrated connector is designed specifically for signal circuit applications and supports data rates of up to 16 Gb/s.
| Feature Category | Feature Name | Description |
|---|---|---|
| Product Type | Plug-in I/O Product Type | Housing assembly with integrated connector |
| Plug-in I/O Plug or Receptacle | Receptacle | |
| Structural Features | Port Matrix Configuration | 2x6 |
| Total Number of Ports | 12 | |
| Includes Optical Tube | No | |
| EMI Suppression | EMI Suppression Type | External Spring |
| Body Features | Centerline (Pitch) | 0.8 mm [0.032 in] |
| Housing Material | Copper Alloy | |
| Contact Features | Tail Plating Material | SnPb |
| Termination Features | Termination To | Printed Circuit Board (PCB) |
| Mechanical Attachment | Mounting Type | Board Mount |
| Mounting Feature | Press-Fit | |
| Alignment Type | Alignment Post | |
| Dimensions | Height | 25.55 mm [1.006 in] |
| Operating Environment | Operating Temperature Range | -55 – 105 °C [-67 – 221 °F] |
| Application | Sealing | Yes |
| Circuit Application | Signal | |
| Industry Standard | UL File Number | E28476 |
| Packaging | Packaging Method | Tray |
