Mounting QSFP28 Fiber Type Speed Data Transmission 1X6 Right Angle QSFP28 Cage with Heat Sink

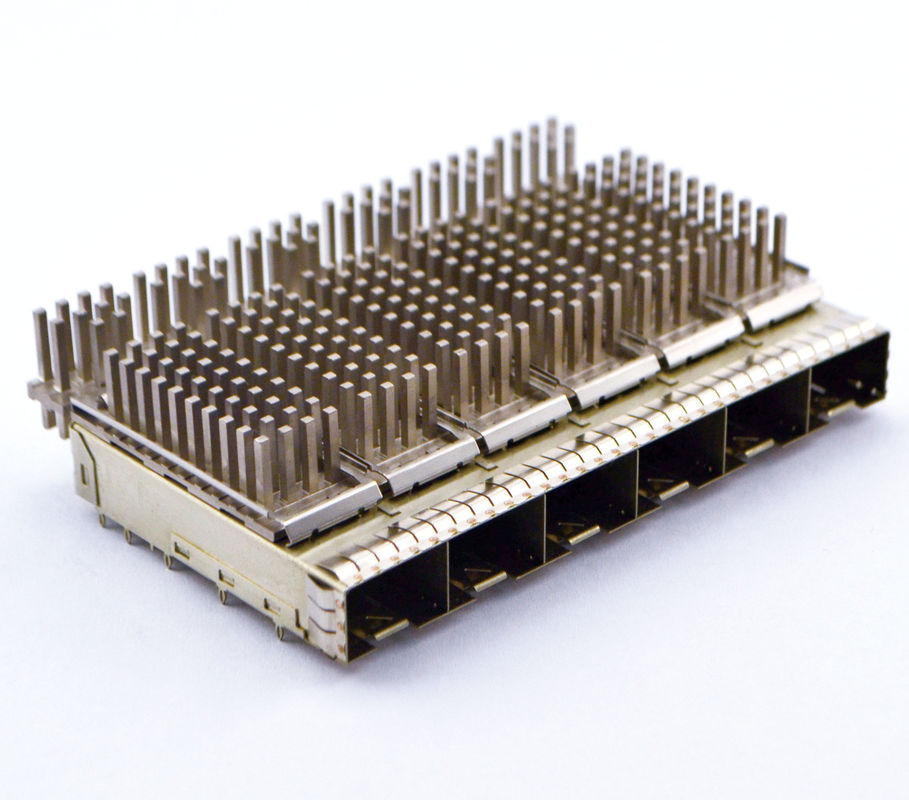

2-2170724-3 QSFP28 1x6 Cage Assembly with Heat Sinks and Light Pipes

The 2-2170724-3 is a 1x6 cage assembly designed for use with QSFP28 MSA-compliant transceivers. It features a through-bezel design and comes equipped with heat sinks and light pipes for improved thermal and optical performance.

The cage is made from nickel-silver alloy, offering reliable EMI shielding. The heat sink is aluminum with a black anodized finish for efficient heat dissipation. A stainless steel clip secures the heat sink in place. The EMI spring is nickel-plated copper alloy, and the light pipes are made from clear polycarbonate rated to UL 94 V-0. The assembly also includes an EMI gasket made from plated, filled silicone, also rated UL 94 V-0 for flame resistance.

This cage assembly is built to support high-speed data transmission in networking and telecom equipment, where thermal management and EMI control are critical.

Key Components:

1. Cage Assembly: Made from nickel-silver alloy for robust shielding and structural integrity.
2. Heat Sink: Constructed from black anodized aluminum to ensure efficient heat dissipation.
3. Heat Sink Clip: Durable stainless steel design for secure heat sink attachment.
4. EMI Spring: Copper alloy with nickel plating for effective EMI suppression.
5. Light Pipe: Clear polycarbonate material rated UL 94 V-0 for flame resistance.
6. EMI Gasket: Plated, filled silicone with UL 94 V-0 flammability rating for enhanced shielding.

Packing

1. Standard packing options: braided packaging, blister packaging, plastic tube packaging, and tape & reel packaging.
2. Customized packaging is available upon request. Please note that additional charges may apply depending on the requirements.

Shipping

1. By Sea: If you have a designated freight forwarder, we can ship the goods to them. If not, we can help arrange the most cost-effective sea freight option for you.
2. By Air: You may contact DHL, FedEx, UPS, or other express carriers once we provide the weight and CBM. Alternatively, using a China-based shipping agent is often more economical — please reach out to our sales team for the lowest shipping quote.

Production Lines

We currently operate 22 production lines. Using IE (Industrial Engineering) technology, we analyze process data to continuously optimize production methods and improve overall efficiency and product quality.

Our Services

1. OEM services available, including product customization and packaging.
2. Sample orders are welcome.
3. All inquiries will be responded to within 24 hours.
4. Comprehensive after-sales support, including shipment tracking and application follow-up.

FAQ

Q: What is the delivery time?
A:

• RJ45/RJ11 Series: 12–20 days
• SFP Series: 25–30 days
• USB Series: 7–15 days
• Connectors: 7–15 days

Q: How can I get a quotation?
A: To help us recommend the most suitable product, please provide detailed specifications (e.g., number of ports, shielded/unshielded, LED type, with or without transformer). A drawing is highly appreciated and will ensure an accurate quote.

Q: Can I request samples?
A: Yes, samples are available for evaluation.

Q: Do you offer OEM and ODM services?
A: Yes, we welcome both OEM and ODM projects.
