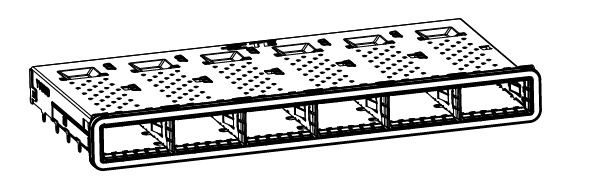

Name: 2170722-3 1x6 Ganged Cage Assembly For QSFP28 Optical Modules
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 2170722-3
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: 2170722-3

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $7-$13

Packaging Details: 20/Tray

Delivery Time: Around 3-5 Days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    2170722-3, QSFP28 Cage Assembly, 1X6 QSFP28 Cage


Part Number:	2170722-3	Type:	QSFP28
Style:	Ganged (1 X 6) Cage	Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit	Gasket:	With

Part Number:	2170722-3
Type:	QSFP28
Style:	Ganged (1 X 6) Cage
Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit
Gasket:	With

2170722-3 1x6 Ganged Cage Assembly For QSFP28 Optical Modules

2170722-3 1X6 QSFP28 CAGE PRESS-FIT Overview

Key Features and Specifications:

Form Factor: QSFP28
Configuration: 1x6 ports, can house six QSFP28 modules.
Data Rate (Max): 28 Gb/s.
Included Components: It comes with a gasket, which helps with EMI shielding. Some similar cage assemblies also include a heat sink for thermal management and light pipes.
Termination Method to PCB: through-hole press-fit
Operating Temperature Range: -55 to 105 °C [-67 to 221 °F]
Application: Primarily used in data communication and networking equipment to provide mechanical support, EMI shielding, and thermal management for QSFP28 optical modules.
Material: Nickel Silver.

Description	2170722-3 is a cage assembly designed for QSFP28 transceivers
Part Status	Active
Connector Style	Cage, Ganged (1 x 6)
Connector Type	QSFP28
Gasket	Included
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit
Features	Board Guide, EMI Shielded, Light Pipe
