Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RT7-114ATK1G
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
RT7-114ATK1G |
Mass Production: |
LPJ16614-9AENL |
Original Munafactuer: |
LINK-PP |
Speed: |
10/100Base-T |
Termination: |
Solder |
LEDs: |
GREEN/YELLOW |
Part Number: |
RT7-114ATK1G |
Mass Production: |
LPJ16614-9AENL |
Original Munafactuer: |
LINK-PP |
Speed: |
10/100Base-T |
Termination: |
Solder |
LEDs: |
GREEN/YELLOW |
1. Designed to support applications, such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), hub, and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bronze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 50U". In contact area.
4. Wave solder tip temperature:250℃, 5 Sec.
5. UL Certification: File Number E484635.
|

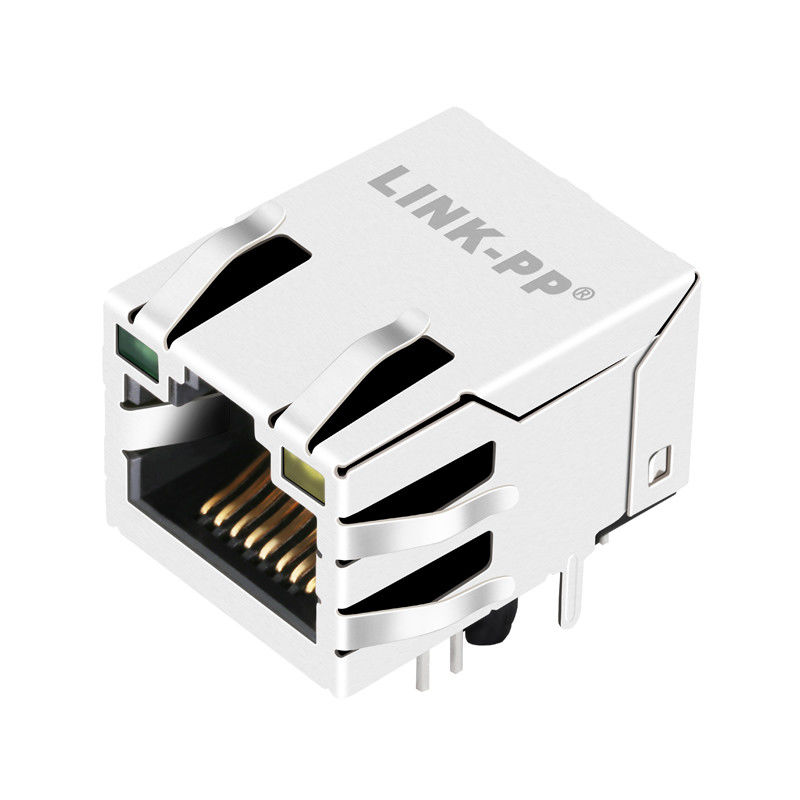

RJ45 Magnetic Connector With 10/100 Base-TXIntegrated Magnetic TAB-UP |
|
|
LINK-PP Part Number |
LPJ16614-9AENL |
|
Part Number |
RT7-114ATK1G |
|
Application-Lan |
ETHERNET(NoN PoE) |
|
AutomDX |
YES |
|
Bst Circuit |
YES |
|
Configuration RX |
T, C |
|
Configuration TX |
T, C |
|
Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
|
Cores per Port |
4 |
|
LED Option |
GREEN/Yellow |
|
Latch |
TAB Up |
|
Number of Ports |
1X1 |
|
PCB |
FR4 |
|
PCB Mount Angle |
SIDE ENTRY |
|
PCB Retaining Post |
T POST |
|
Pin Type |
THT SOLDER |
|
RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|
Search |
YES |
|
Shield EMI Tabs |
WITH |
|
Speed |
10/100 BASE-T |
|
Temperature |
-40 TO +85℃ |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
FAQ:
Q: Are you a trading company or manufacturer?
A: LINK-PP INT'L TECHNOLOGY CO., LIMITED is a magnetic telecom and networking components manufacturer. We are certified by ISO9001:2000, ROSH, REACH, CE, and UL. With advanced manufacturing facilities and test equipment imported from abroad, we have been in operation since 1997 and currently employ around 2000 staff. With a monthly capacity of 3000K units, we can deliver goods promptly. We offer comprehensive solutions for magnetic components and robust technical support. Our products find applications in networking and communication equipment like HUBs, PC cards, switches, routers, PC motherboards, SDH, PDH, IP phones, and xDSL modems.
Q: What is the typical delivery time?
A: Generally, it takes 5-7 days for standard products about 10,000 pieces.
Q: Do you provide samples? Are they free or charged?
A: Free samples are readily available for testing and quality evaluation purposes.
Q: What are your payment terms?
A: We offer flexible payment terms including T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram, etc. You can also use your credit card to pay on Alibaba.
Q: Do you accept small orders of less than 100 pieces?
A: Yes, we do accept small orders. Please contact us.
