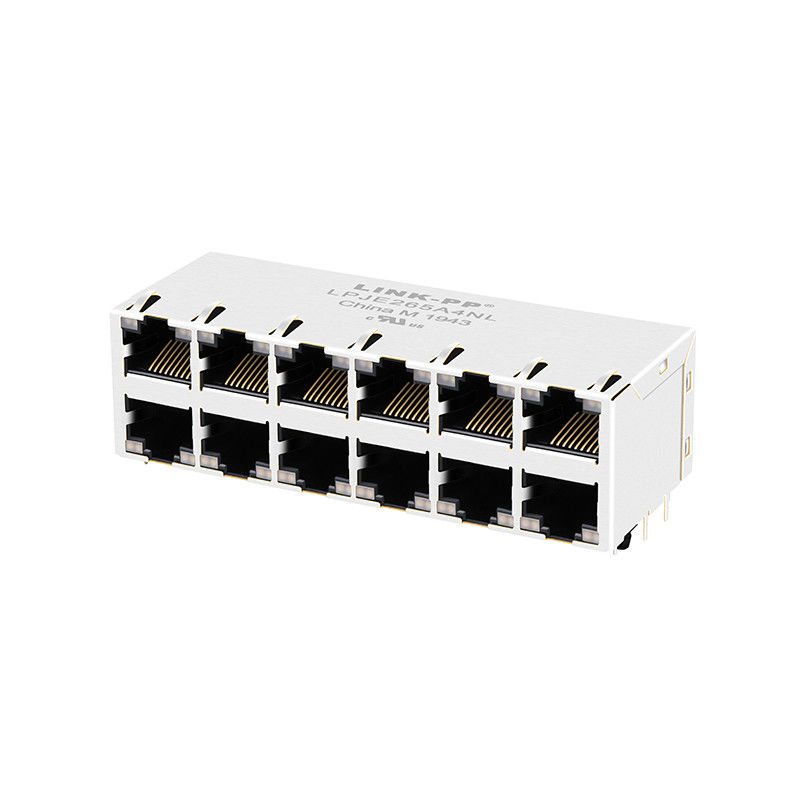

XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL

XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL
XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL

Large Image :  XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XMD-45048-46M151-TEJ
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Detailed Product Description
Spec: XMD-45048-46M151-TEJ Port: 2x6 Female Rj45
Magnetics: WITHOUT LED: Green&Yellow / Green&Yellow
Mounting: Side Entry (Right Angle) Cross Ref: LPJE265A4NL

XMD-45048-46M151-TEJ 8P8C Stacked RJ45 2x6 Without Magnetics Connector LPJE265A4NL



2x6 Port 8P8C RJ45 Female Connector without Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJE265A4NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Green&Yellow/Green&Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X6
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 25.30
Package Length (mm) 32.50
Package Width (mm) 87.18
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed without Magnetics
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
