Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HR946130HE
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month
Spec: |
HR946130HE |
Port: |
2x1 Female Rj45 |
Magnetics: |
1000 Base-T |
LED: |
Green/Orange&Green Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJG17610A105NL |
Spec: |
HR946130HE |
Port: |
2x1 Female Rj45 |
Magnetics: |
1000 Base-T |
LED: |
Green/Orange&Green Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJG17610A105NL |

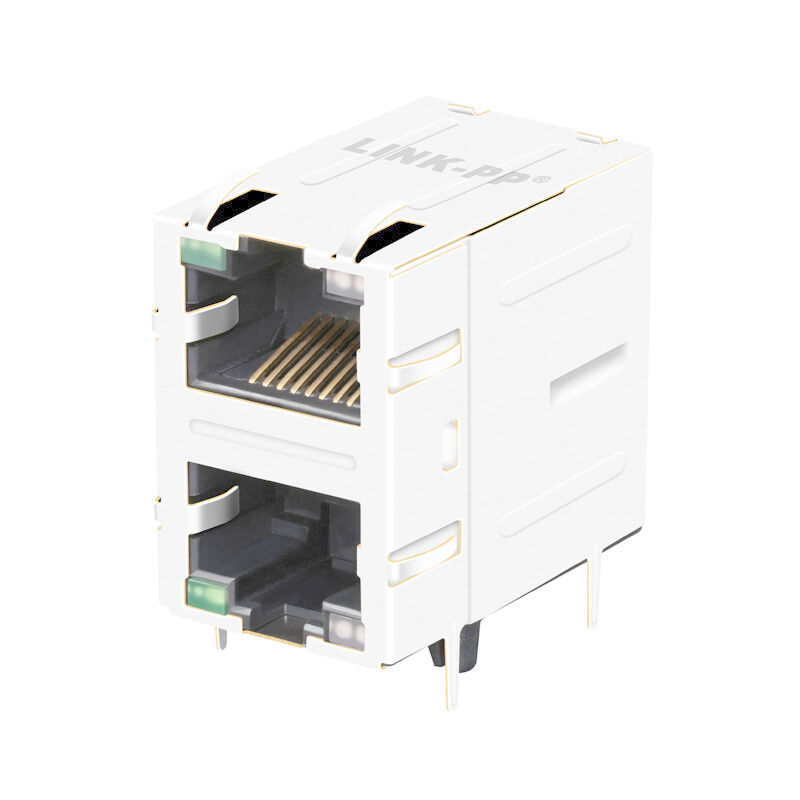

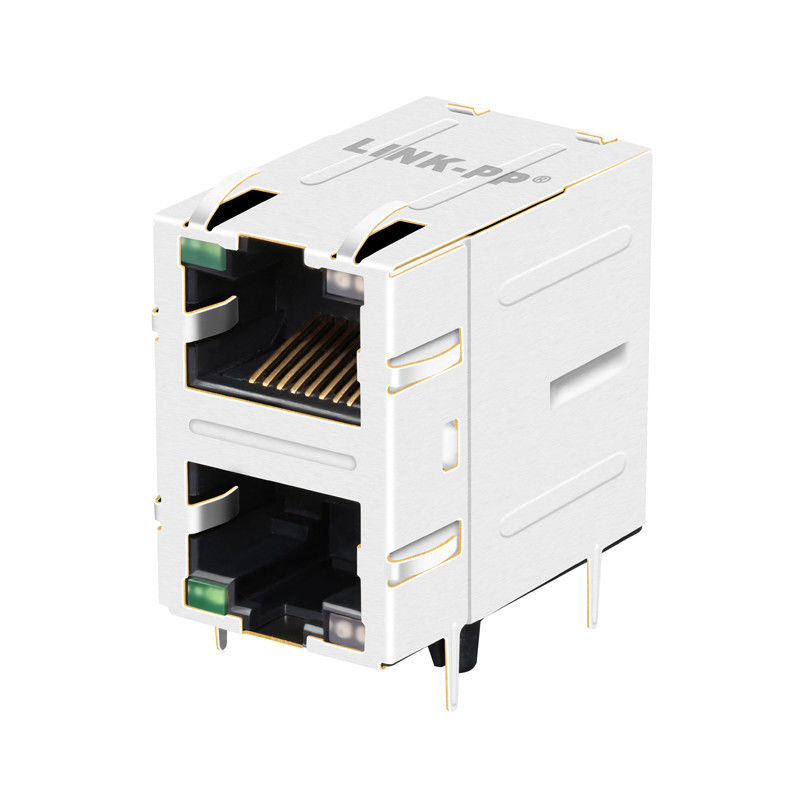

| 1000 Base-T 2x1 Port Stacked RJ45 Connector | |
| LINK-PP Part Number | LPJG17610A105NL |
| Speed | 1000 BASE-T |
| Number of Ports | 2x1 Port |
| Application - LAN | ETHERNET (NON PoE) |
| Package | THT |
| Temperature | -40 TO 85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX/TX | T,C,S |
| LED | Green/Orange&Green Leds |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Package Height (Inches) | 0.996 |
| Package Height (mm) | 25.29 |
| Package Length (Inches) | 1.122 |
| Package Length (mm) | 28.50 |
| Package Width (Inches) | 0.678 |
| Package Width (mm) | 17.21 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch
,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
FAQ
the questions which our partner ask most
Q1. How about the quality?
A: We tested 100% before we ship out.We offer 90- 180days quality assurance.
Q2. What is your terms of payment?
A: Order below 10000USD is T/T 100% in advance .
B:Order over 10000USD T/T 50% as deposit to arrange goods.and rest 50% before delivery.
C:Sample order we can support
PAYPAL , WERTERN UNION,UnionPay and Alipay.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.(defaults EXW for all quotation)
Q4. How about your lead time?
A: There are no lead time for in-stock products.We can ship out within 1-3days after you confirmed the payment.
B:Customized product,we will ship out within our professional invoice show.
Q5. What is your sample policy?
A: Most of products,we can offer free samples;you just need pay the shipping cost.
Q6:Can we ask support if get trouble?
Sure, if there is any quality problems or questions;we could offer technical support or return service .
Q7. Can we return back the goods?
A: Sure, if you are not satisfied with the quality;you can send the original box back to exchange or refund.You pay the return ship cost.We pay the back cost.
B:If you get wrong item and the mistake made by yourself;we can offer return too.But you should pay the ship cost both.And you can ask us to exchange or refund.
