Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: SK02-111008ABNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package: Carton size 32*30*31cm , G.W/carton 8.5kg , Qty/carton 1200pcs , SPQ 50pcs
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month
Spec: |
SK02-111008ABNL |
Port: |
1x1 Female Rj45 |
Magnetics: |
100 Base-T |
LED: |
Green/Yellow Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJ0026GBNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Spec: |
SK02-111008ABNL |
Port: |
1x1 Female Rj45 |
Magnetics: |
100 Base-T |
LED: |
Green/Yellow Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJ0026GBNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |

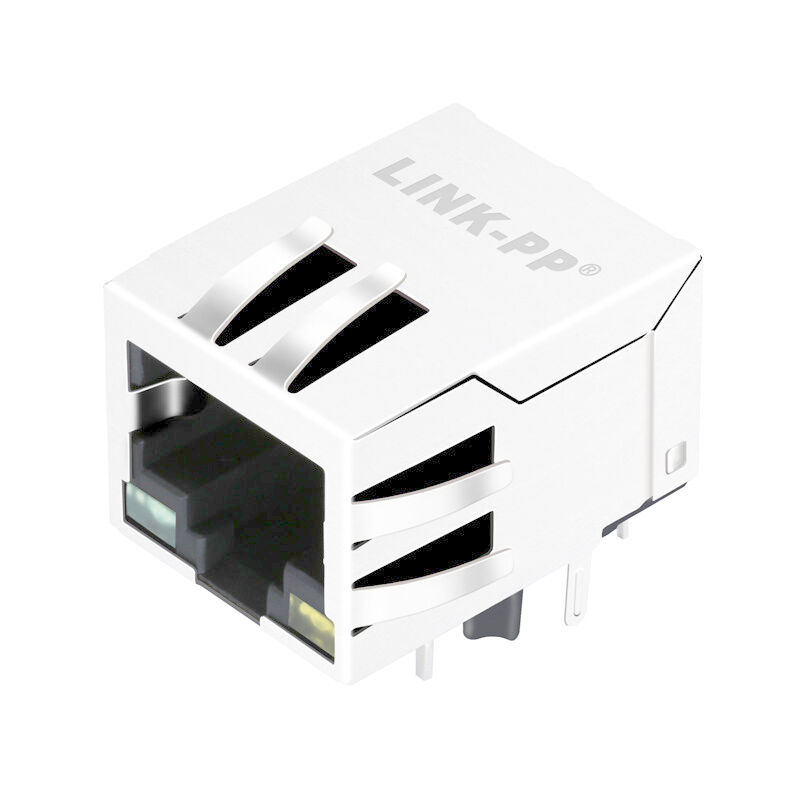

| Single Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics, Without LED, Tab Down, RoHS | |||
| LINK-PP Part Number: | LPJ0026GBNL | Part Number | SK02-111008ABNL |
| Part Status | Active | Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 5 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.524/13.30 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.627/15.93 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
