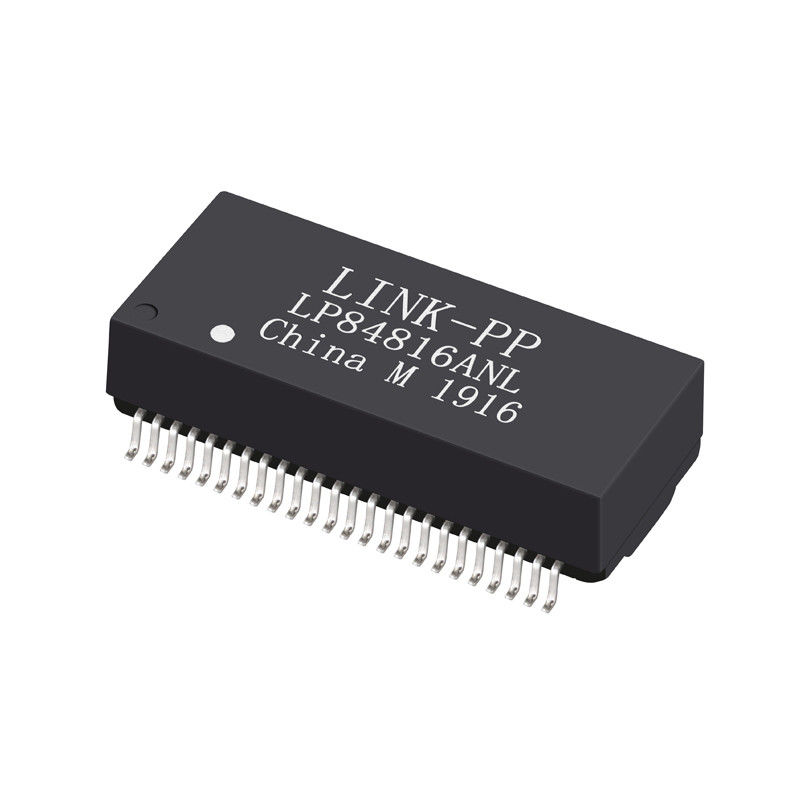

HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL

Name: HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL
Brand: LINK-PP
SKU: HR664851E
Price: 0.06 USD
Availability: InStock
Rating: 4.8 (104 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HR664851E

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                HR664851E, Dual Port Discrete LAN Magnetics, LAN Magnetics


P/N COO:	LP6080NL	Ethernet:	10/100/1000 Power
Mounting:	SMD	Samples:	Free
File:	PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

P/N COO:	LP6080NL
Ethernet:	10/100/1000 Power
Mounting:	SMD
Samples:	Free
File:	PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL

HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL

HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL 0

Electrical Specfications@25℃
1.Turn Ration(3%)
Pri:Sec=1CT:1CT
2.Inductance OCL:
120uH MIN @ 100KHz 0.1V 19mA DC Bias
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 1-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-90MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Balanced DC Line current:
720mA MAX @ 57VDS Continuous.
8.Hipot Test:1500Vrms
9.Operating Temperature Range:-40℃ TO +85℃

HR664851E Dual Port Discrete LAN Magnetics For PoE 100/1000 Base-TX VoIP 48 Pin LP84816ANL 2

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,

Active Optical Network , Fingerprint Access Control.
