Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 130-D309503C6H-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package: Carton size 32*30*31cm , G.W/carton 8.5kg , Qty/carton 1200pcs , SPQ 50pcs
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month

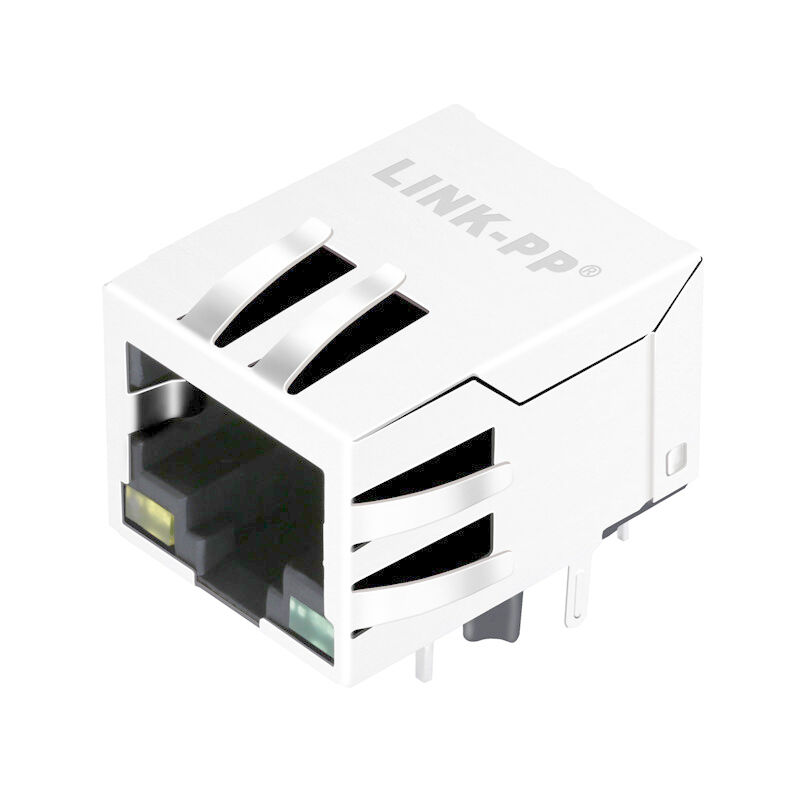

Spec: |
LPJG4945ADNL |
Port: |
1x1 Female Rj45 |
Magnetics: |
100 Base-T |
LED: |
Green/Yellow Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJ16211BENL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Spec: |
LPJG4945ADNL |
Port: |
1x1 Female Rj45 |
Magnetics: |
100 Base-T |
LED: |
Green/Yellow Leds |
Mounting: |
Right Angle |
Cross Ref: |
LPJ16211BENL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
| Specification | |
| Part Status | Active |
| Current Rating | 1.5 Amp |
| Insrlator Material | Polyester(UL94V-0) |
| Contact Material | PHOSPHOR BRONZE |
| Contact Resistance | 30 MΩ Max |
| Withstanding Voltage | 1000VAC |
| Operation Temperature | —40℃ to +85℃ |
| Package | Bag packing,Tube packing,Tape&Reel packing |
| Application | Pcb board |
| Samples | Provided |
| Confirmation | Drawing will be provided before production |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Characteristics
RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Applications
Suitable for industrial temperatures from –40 °C up to +85 °C
Compatible to Industrial Ethernet systems like EtherCAT or Profinet
Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell
Hubs, Routers, Switches, IP cameras, IoT applications
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with over 10 years experience in connector industrial.
Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.
Q: Do you provide samples? is it free or charged
A: Free samples are always available for testing or quality evaluation purpose.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
