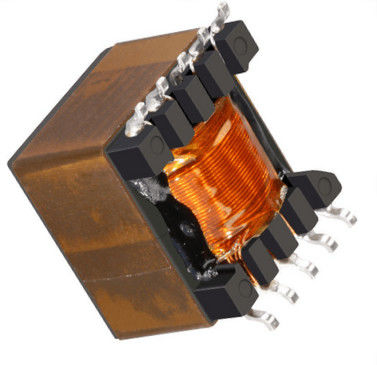

POE51Q-33ED High Power Flyback Transformers RoHS Standard

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

POE51Q-33ED High Power Flyback Transformers RoHS Standard

POE51Q-33ED High Power Flyback Transformers RoHS Standard
POE51Q-33ED High Power Flyback Transformers RoHS Standard
video play

Large Image :  POE51Q-33ED High Power Flyback Transformers RoHS Standard

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: POE51Q-33ED
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
Specifications: POE51Q-33ED Power: 51W
Inductance At 0A: 26.7@±10% Tolerance: 10%
Isat: 4.5A Leakage Inductance Max: 0.32µH
Isolation Voltage: 3.3 V, 14.1 A Secondary Output: PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle: More Than 20Years
High Light:

RoHS Standard Flyback Transformers

,

UL High Power Flyback Transformers

,

LINK-PP Flyback Transformers

POE40Q-48ED Flyback Transformers for PoE

Specifications Power (W) Inductance at 0A(µH) Tolerance(%) Isat(A) DCR max (mΩ)
Pri Sec Aux
POE51Q-33ED 51 26.7@±10% 10 4.5 64 2 104



Leakage
Inductance
max
(µH)
Turns Ratio Isolation
Voltage
(Vrms)
Secondary
Output
(V, A)
Pri : Sec : Aux
0.32 1 : 0.143 : 0.5 1500 3.3 V, 14.1 A



• Developed for Flyback DC/DC PoE PD power converters up to 51 W

• Designed to meet the upcoming IEEE802.3bt standard and operates with 36 – 57 V input

• 1500 Vrms, one minute isolation (hipot) between primary and auxiliary to secondary.

• Perfect solution for high power PoE applications including Smart Building and IoT

• AEC-Q200 Grade 1 (–40°C to +125°C)



Core material  Ferrite

Environment   RoHS compliant, halogen free

Terminations   Tin-silver-copper over tin over nickel over phos bronze

Weight   6.5 – 8 g

Ambient temperature  –40°C to +125°C

Maximum part temperature  +165°C (Ambient + temp rise)

Storage temperature Component: –40°C to +165°C

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

1. Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic tape (150 parts per full reel).

                               Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

2. Inductance is for the primary, measured at 250 kHz, 0.5 Vrms, 0 Adc.

3. Leakage inductance is for the primary with the secondary and aux windings shorted.

4. DC current at 25°C that causes an inductance drop of <15% (POExx51Q) and <15% (POExx40Q) from its value without current.

5. Output is for the secondary. Output of the aux winding is 12 V, 30 mA.

6. Electrical specifications at 25°C. Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
