Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

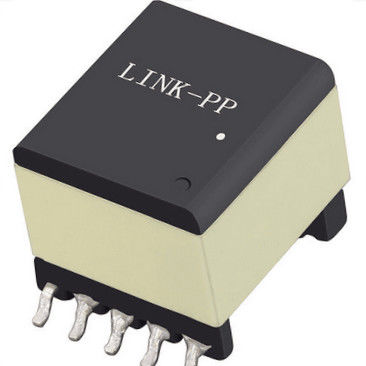

Model Number: POE23PR-33ED
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
POE23PR-33ED |
Power: |
23W |
Inductance At 0A: |
54 |
Tolerance: |
10% |
Isat: |
3.2A |
Leakage Inductance Max: |
0.67µH |
Isolation Voltage: |
3.3 V, 3.5 A |
Secondary Output: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Specifications: |
POE23PR-33ED |
Power: |
23W |
Inductance At 0A: |
54 |
Tolerance: |
10% |
Isat: |
3.2A |
Leakage Inductance Max: |
0.67µH |
Isolation Voltage: |
3.3 V, 3.5 A |
Secondary Output: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| Specifications | Power (W) | Inductance at 0A(µH) | Tolerance(%) | Isat(A) | DCR max (mΩ) | |||
| Pri | Sec1 | Sec2 | Aux | |||||
| POE23PR-33ED | 23 | 54 | 10 | 3.2 | 62 | 6.5 | 6.5 | 58 |
| Leakage Inductance max (µH) |
Turns Ratio | Isolation Voltage (Vrms) |
Secondary Output (V, A) |
| Pri : Sec1 : Sec2: Aux | |||
| 0.67 | 1 : 0.125 : 0.125 : 0.375 | 1500 | 3.3 V, 3.5 A |
• Flyback and Forward transformers for PoE up to 72 Watts
• Operates with 9 – 57 V input (POE21, 22, 24, 33, 35 and 38)
• Operates with 33 – 57 V input (POE23, 30, 36, 53, 70, and 72)
• One minute isolation (hipot): 1500Vrms, from pri and aux to each
sec; 500Vrms from pri to aux; 500Vrms between two secondary
• Dual outputs can be configured as one single higher power output
• AEC-Q200 Grade 1 (–40°C to +125°C)
Core material Ferrite
Environment RoHS compliant, halogen free
Terminations Tin-silver-copper over tin over nickel over phos bronze
Weight 7.1 – 7.9 g
Ambient temperature –40°C to +125°C
Maximum part temperature +165°C (Ambient + temp rise)
Storage temperature Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
1. Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic
tape (150 parts per full reel). Quantities less than
full reel available: in tape (not machine ready) or
with leader and trailer ($25 charge).
2. Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
3. Leakage inductance measured between pins 1 and 3 with all other
pins shorted.
4. Output is for each secondary. Output of the aux winding is 10 V, 50 mA.
5. Based on 280 mT at 25°C and number of turns on pins 1-3.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Q1: Are you a manufacturer or trade company ?
A: we are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is it OEM available?
A: Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on the products.
Q4: How about the lead time ?
A: We have a very professional team with high quality, usually we can ship within 30 days. But for details, please contact our salesman, thank you.
