LPJ0049A76NL Rj45 Jack Cross 1-6605310-1 , With 8 Diodes,LED Buit in Resistors

Name: LPJ0049A76NL Rj45 Jack Cross 1-6605310-1 , With 8 Diodes,LED Buit in Resistors
Brand: LINK-PP
SKU: 1-6605310-1
Price: 0.05 USD
Availability: InStock
Rating: 4.9 (163 reviews)

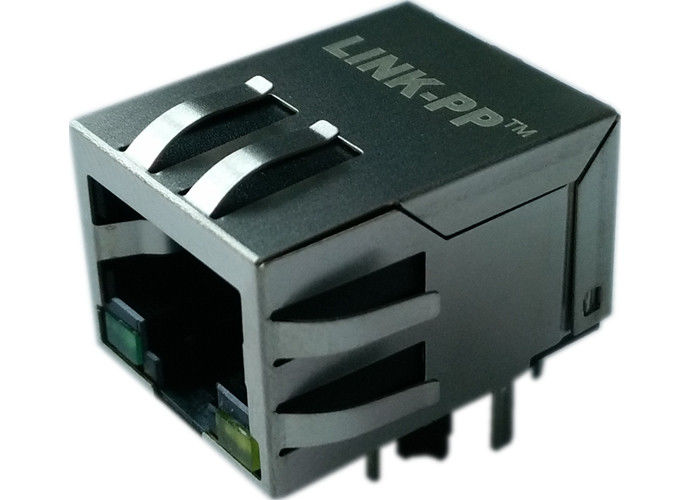

Large Image : LPJ0049A76NL Rj45 Jack Cross 1-6605310-1 , With 8 Diodes,LED Buit in Resistors

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	1-6605310-1

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

Specifications:	1-6605310-1	Cross Part:	LPJ0049A76NL
Design Flexible:	Yes	Samples:	Available
LED:	Green / Green	Latch:	Tab Down
High Light:	rj-45 ethernet jack , industrial rj45 connector

LPJ0049A76NL Rj45 Jack Cross 1-6605310-1 , With 8 Diodes,LED Buit in Resistors

1.Rj45 Power Over Ethernet Pinout

2. Tab-down RJ45 with 8 diodes

3. Rj45 With LED Buit in Resistors

4.1 x 10/100 Mbit Ethernet

LINK-PP Part Number	LPJ0049A76NL
Designing Model	1-6605310-1
Cores per Port	4
LED Option	GREEN/GREEN
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.30
Package Length (mm)	21.25
Package Width (mm)	15.93
Shield EMI Tabs	WITH
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
