Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: LPJ/LPJG/LPJK/LPJE series
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Product Name: |
SMT RJ45 Connector |
Gender: |
Female |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
10/100M |
OEM/ODM: |
Available |
Product Name: |
SMT RJ45 Connector |
Gender: |
Female |
Port: |
1x1,single,custom |
Application: |
HUB, PC Card, Switch Etc |
Speed: |
10/100M |
OEM/ODM: |
Available |

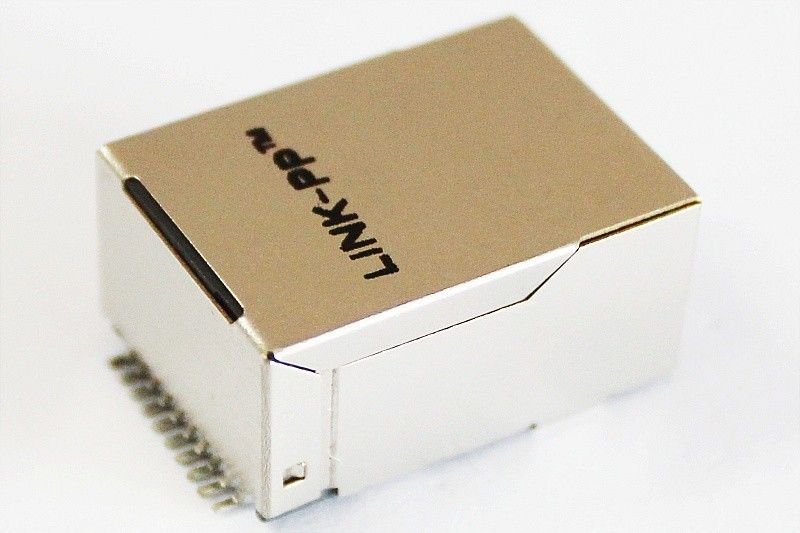

1500Vrms Surface Mount SMT RJ45 Connector For PC Mainboard J0C-0006NL
1. P C Mainboard, SDH, PDH, IP Phone, xDSL modem
2. Surface mount / Multi Pin 10 Pin RJ45
3.Printed Circuit Board networking and communication equipments
4.Minimum 1500Vrms
Description:
J0C-0006NL RJ45 MODULAR JACK, Surface mount RJ45
| 1. Product Type Features: | |
| 1) Product Type | Connector |
| 2) Jack Type | RJ45 |
| 3) Profile | Standard |
| 4) PCB Mounting Orientation | SMT |
| 2. Mechanical Attachment: | |
| 1) Jack Configuration | 1X1 |
| 3. Electrical Characteristics: | |
| 1) Shielded | Yes |
| 4. Termination Related Features: | |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: | |
| 1) Port Configuration | tab-down, SMT |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch Down |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: | |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | SMT |
| 7. Housing Related Features: | |
| 1) Connector Style | Jack |
| 8. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes | Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: | |
| 1) Left LED Color | Green or Yellow |
| 2) Right LED Color | Green or Yellow |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - 70/-40 - +85 |
| 11. Configuration Related Features | |
| 1) Magnetic Circuit | 3D15 |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 5) Signal Lead Quantity | 8 |
| 12. Operation/Application: | |
| 1) Application | 10/100 Base-T |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
