Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

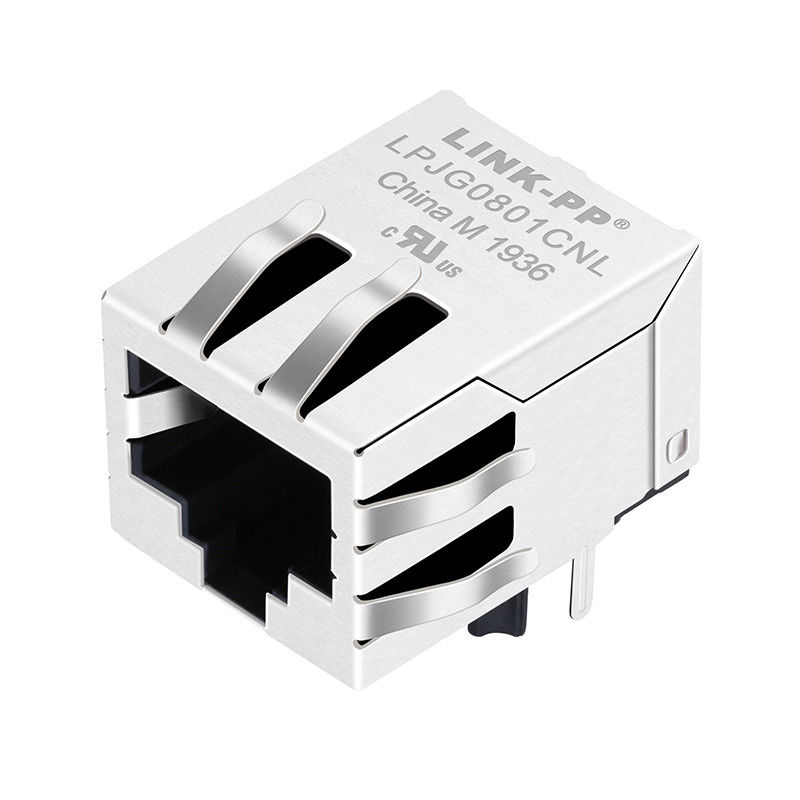

Model Number: LPJG0801CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4500K/month
Original: |
HR901131C |
Equivalent: |
LPJG0801CNL |
Port: |
1x1,single,custom |
Dimension: |
15.90X21.30X13.40MM |
Speed: |
1000M |
OEM/ODM: |
Available |
Original: |
HR901131C |
Equivalent: |
LPJG0801CNL |
Port: |
1x1,single,custom |
Dimension: |
15.90X21.30X13.40MM |
Speed: |
1000M |
OEM/ODM: |
Available |
NOTES:
1. Designed to support application,such as SOHO(ADSL modems),
LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact / Shield : Cooper alloy
Shield plating : Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4. Wave solder tip temperature : 265℃ Max
Wave solder tip temperature Time : 5 Sec Max
Description:
| 1. Product Type Features: | |
| 1) Product Type | Connector |
| 2) Jack Type | RJ45 |
| 3) Profile | Standard |
| 4) PCB Mounting Orientation | Through Hole |
| 2. Mechanical Attachment: | |
| 1) Jack Configuration | 1X1 |
| 3. Electrical Characteristics: | |
| 1) Shielded | Yes |
| 4. Termination Related Features: | |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: | |
| 1) Port Configuration | Stecked |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch Down |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: | |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | Through Hole |
| 7. Housing Related Features: | |
| 1) Connector Style | Jack |
| 8. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes | Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: | |
| 1) Left LED Color | Without |
| 2) Right LED Color | Without |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - 70 |
| 11. Configuration Related Features | |
| 1) Magnetic Circuit | 3D15 |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 5) Signal Lead Quantity | 8 |
| 12. Operation/Application: | |
| 1) Application | 1000 Base-T |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
