Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: G10-1GHT-012E
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
G10-1GHT-012E |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
10G Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Part Number: |
G10-1GHT-012E |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
10G Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

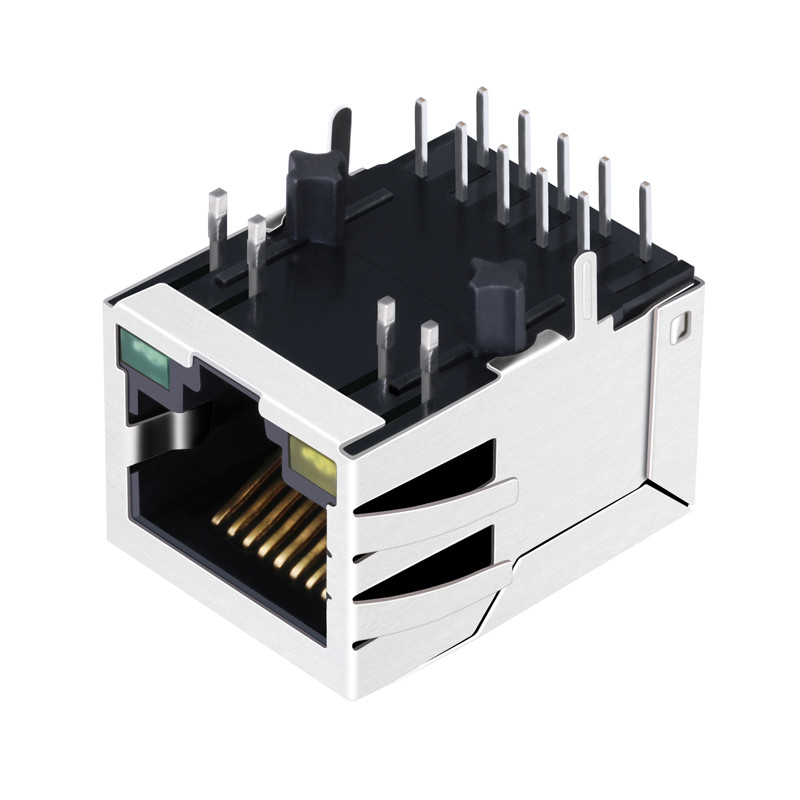

| G10-1GHT-012E 10G Base-T Tab Down YELLOW/GREEN Led 1x1 Port RJ45 Female Connector | |
| LINK-PP Part Number |
G10-1GHT-012
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10g BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated
by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test
equipments imported from abroad. Established in 1997, we have around 2000 staff at present.
With the abundant productive capacity of 3000K per month, we are able to delivery the goods
within the short time.Moreover, we can provide the professional complete solution for magnetic
components and strong technical support as well. Our products are widely used in networking
and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP
Phone,xDSL modem.
Main Products
10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
T1/E1,T3/DS3/E3/STS-1 interface line transformer
ISDN,HDSL,ADSL and VDSL interface line transformer and splitter
