Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: E5362-3000G2-L
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
E5362-3000G2-L |
OEM & ODM: |
LINK-PP |
Samples: |
Free Available |
PACKAGE HEIGHT: |
11.6 Mm |
PACKAGE LENGTH: |
18.1 Mm |
PACKAGE WIDTH: |
13.2 Mm |
Part Number: |
E5362-3000G2-L |
OEM & ODM: |
LINK-PP |
Samples: |
Free Available |
PACKAGE HEIGHT: |
11.6 Mm |
PACKAGE LENGTH: |
18.1 Mm |
PACKAGE WIDTH: |
13.2 Mm |

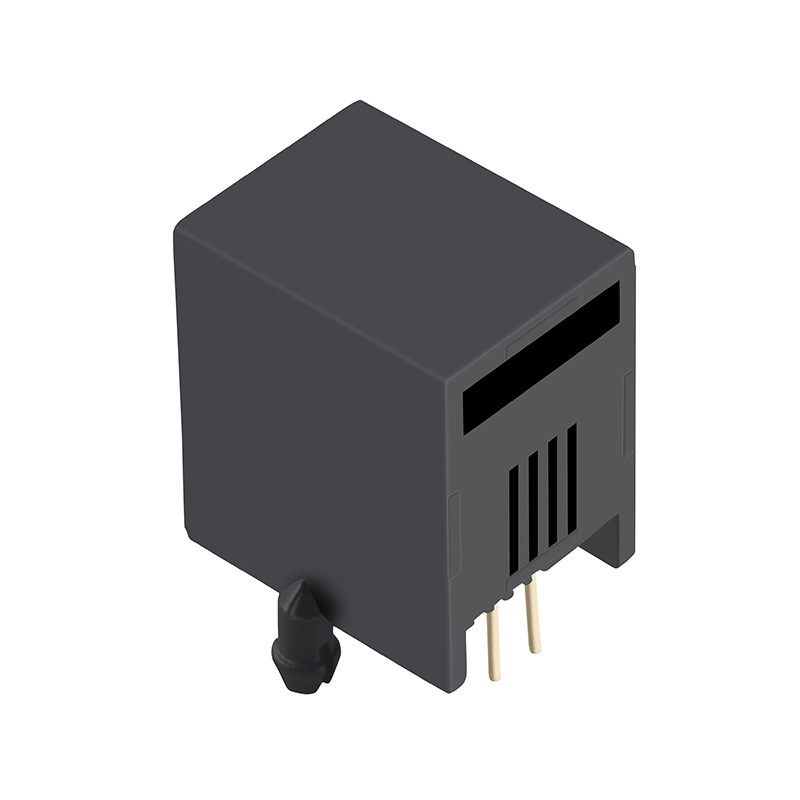

| Part Number | E5362-3000G2-L |
| Part Status | Active |
| Connector Type | RJ11 |
| Number of Contacts | 2 |
| Number of Positions | 6 |
| LED Option | Without led |
| Latch | TAB Up |
| Number of Ports | 1X1 Port |
| Speed | Cat 3 |
| Shield | No Shield |
| Orientation | 90° Angle (Right) |
| Shield EMI Tabs | NO |
| Mounting Type | Through Hole |
| Temperature | -40°C ~ 85°C |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| AutomDX | YES |
| Contact Mating Area Plating | Gold 6 U'' |
| Housing Material | PBT +20% GF |
| RoHS Compliant | Yes-RoHS-6 |
1. Manufacturing Flexibility
2. High Yield Rate
3. Short Lead Time
4. Automated Process
