Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JX0C-0005NLT
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
JX0C-0005NLT |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
10/100 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Part Number: |
JX0C-0005NLT |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
10/100 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

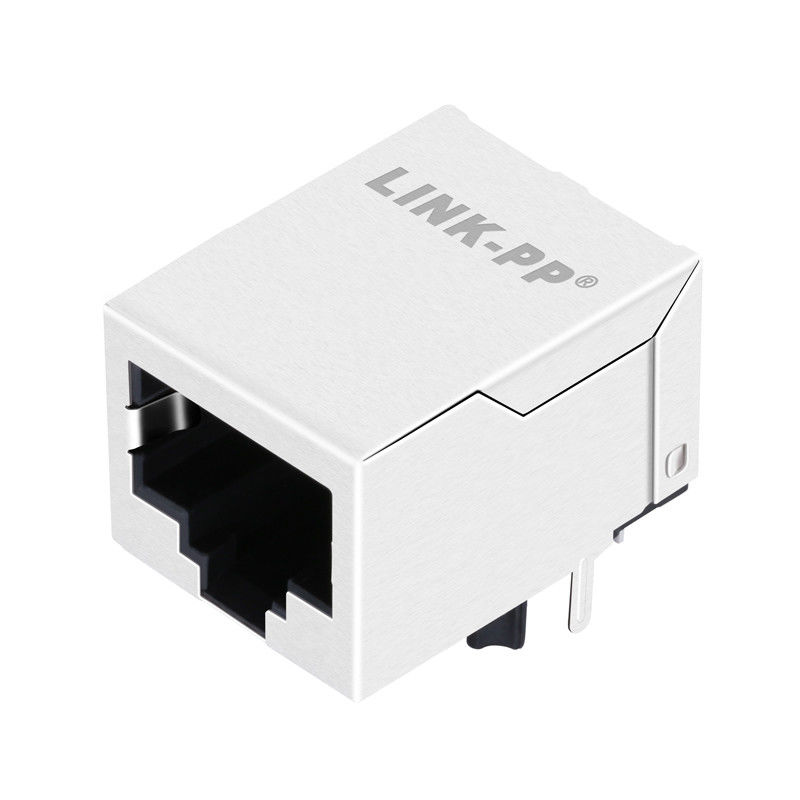

The JX0C-0005NLT supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.
| Part Number: | JX0C-0005NLT | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Without |
| PCB | FR4 | PCB Retaining Post | T POST |
| Temperature | 0 TO 70℃ | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
JX0C-0005NLT 100 Base-T Rj45 Ethernet Jack Package:
Package:Tray N.W/pcs:0.008kg
SPQ:50pcs Qty/carton:1000pcs
Carton size:32*30*31cm G.W./carton:8kg
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers.
LINK-PP Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch
,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
Main Product
• RJ45 Modular Jack & USB Jack
• 10/100M/1G/2.5G/5G/10G Discrete Magnetic
• 10/100M/1G/2.5G/5G/10G Magnetic RJ45
• T1/E1/T3/E3 Transformer
• SFP/SFP+ Cage&Receptacle Connector
• Optical Transceivers
FAQ
Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.
Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welocome.
Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q5:What kind of payment do accept ?
A:ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
