Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

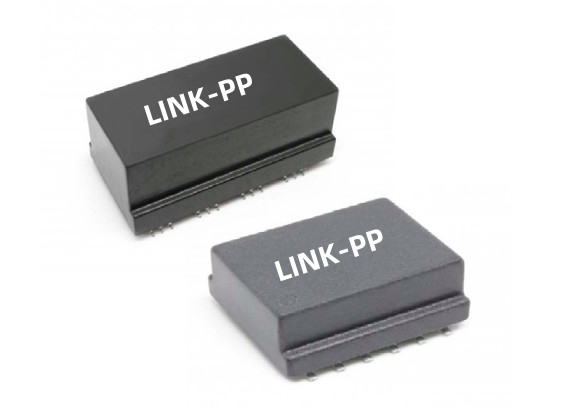

Model Number: HX1332CNL
Payment & Shipping Terms
Minimum Order Quantity: 200/1000 pcs
Price: $0.09-$2.2
Packaging Details: Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
P/N: |
HX1332NL / HX1332CNL |
Transformer Function: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Temperature: |
-40°C ~ 85°C |
Mounting: |
SMT |
Length: |
25.4 Mm |
Width: |
17.2 Mm |
Height: |
10.6 Mm |
P/N: |
HX1332NL / HX1332CNL |
Transformer Function: |
Isolation And Data Interface |
Turns Ratio: |
1CT : 1CT |
Temperature: |
-40°C ~ 85°C |
Mounting: |
SMT |
Length: |
25.4 Mm |
Width: |
17.2 Mm |
Height: |
10.6 Mm |
|
Part Number |
HX1332NL |
HX1332CNL |
|
Data Rate |
100Base-TX |
100Base-TX |
|
Number of Channels/Ports |
1 |
1 |
|
PoE |
15W 2Pair |
30W 2Pair |
|
PIN |
16 |
16 |
|
Operation Temperature |
-40℃ to +85℃ |
-40℃ to +85℃ |
|
Safety Insulation |
REINFORCED |
REINFORCED |
|
Working Voltage |
400V |
400V |
|
Isolation |
4000Vrms / 60sec |
4000Vrms / 60sec |
|
Inductance |
200uH min |
350uH @ 8mA |
|
Construction |
OPHD |
OPHD |
|
Reinforced Insulation Class |
2MOOP / 1MOPP |
2MOOP / 1MOPP |
|
Creepage and Clearance (min) |
8.0 / 6.4mm |
8.0 / 6.4mm |
|
Insertion Loss (MAX) |
0.1 -30MHz: -1.0dB |
0.1 -30MHz: -1.0dB 60-80MHz: -3.0dB 100MHz: -4.0dB |
|
Return Loss (MAX) |
1-30MHz: -10dB |
1-30MHz: -9dB 40MHz: -7dB 60 / 100MHz: -4.5 / -2dB |
|
DCMR(MIN) |
1MHz: -50dB |
1MHz: -50dB 30-60MHz: -35dB 100MHz: -30dB |
1. Material: Black Conductive Polystyrene
2. Components per Reel: 200 pcs
3. Quantity per box: 5x reels = 1000 pcs
