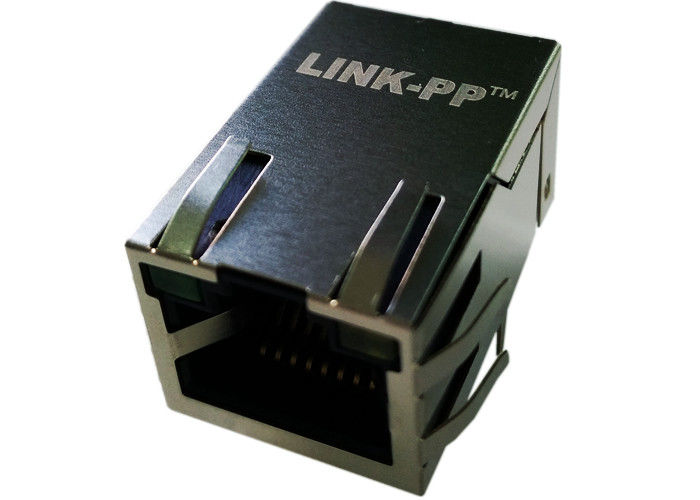

LPJ2026KONL RJ45 Modular Jack Through Hole Pin To Pin Cross 0810-1X1T-03

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 0810-1X1T-03

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

Customer PN:
0810-1X1T-03
Made In China:
SM - LPJ2026KONL
Design Flexible:
Yes
Samples:
1-5 Free Supportive
Minimum Order Quantity:
200/500//1200 Pcs
Price:
Supportive
Customer PN:
0810-1X1T-03
Made In China:
SM - LPJ2026KONL
Design Flexible:
Yes
Samples:
1-5 Free Supportive
Minimum Order Quantity:
200/500//1200 Pcs
Price:
Supportive
LPJ2026KONL RJ45 Modular Jack Through Hole Pin To Pin Cross 0810-1X1T-03
LPJ2026KONL RJ45 Modular Jack Through Hole Pin To Pin Cross 0810-1X1T-03



LINK-PP Part Number LPJ2026KONL Electrical Specifications @25℃
1.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance(100KHz/0.1V@8mA):350uH min
3.Insertion Loss:
0.1-100MHz:-1.0dB max
4.Return Loss(dB min):
1-10MHz:-20
10-30MHz:-16
30-60MHz:-12
60-100MHz:-10
5.Crosstalk(dB min):
1-30MHz:-40
30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejiction(dB min):
1-50MHz:-30
50-150MHz:-20
7.Hipot:1500Vrms MIN
8.Operating Temperature: 0℃~70℃.
Designing Model 0810-1X1T-03
Cores per Port 4
LED Option Orange / Green / Yellow
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.25
Package Length (mm) 25.6
Package Width (mm) 16.8
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

NOTES:
1.Designed to support application,such as SOHO(ADSL
  modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact
                   area.
4.Wave solder tip temperature: 265℃ Max
  Wave solder tip temperature time: 5 Sec Max
